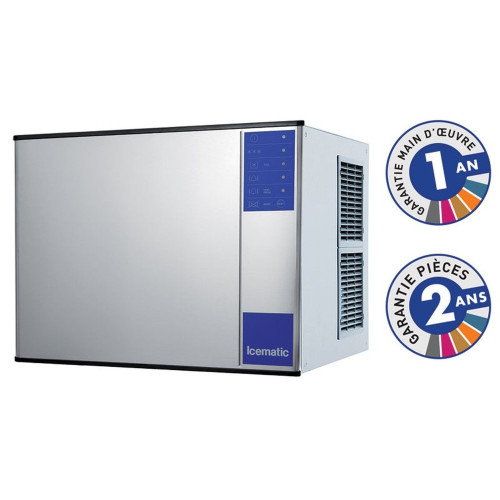

ICEMATIC FULL ICE MAKER, 465 KG / DAY, AIR CONDENSER

Product Status : Pre-Order

Full ice machine , 465 Kg / day, air condenser.

Production: 415 kg / day (water condenser).

Dimensions in mm: 760 x 620 x 725.

Power: 2350W.

The Icematic N-Series solid ice machines are large capacity and without a storage bin.

They are ideal for premises that have a high consumption of ice cubes .

The Icematic model M502 ice maker is a full ice maker, large capacity and without storage bin.

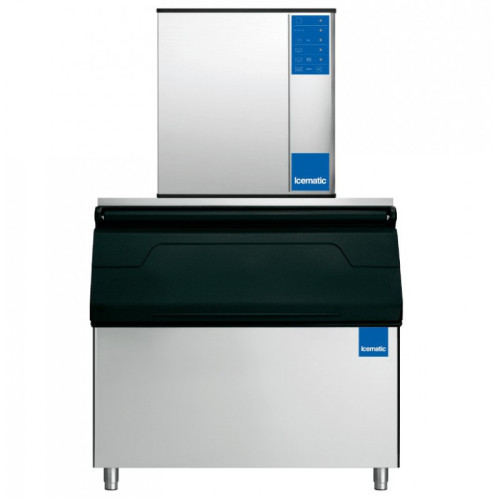

That is to say that this ice machine must be coupled with the storage bins D305KM, D405KFM or D505KFM (you will find them at the bottom of the page) .

This modular ice machine allows you to choose several types of storage: 252 kg, 406 kg or 478 kg.

The N502M model has electronic controls with main functions and automatic cleaning and rinsing programs.

In addition, the water tray and the pump are removable, which greatly facilitates cleaning.

The air filter is accessible from the side of the machine. With its new nickel-plated vertical evaporator, this allows better hygiene and greater efficiency for defrosting.

The M502 Icematic full ice maker without storage bin has been made entirely ofstainless steel , with a modern design and extremely neat finishes.

The updated construction philosophy makes machine maintenance very easy.

Thanks to its uniform and continuous jet technology, this allows it to produce a large capacity of full ice cubes.

It can produce 465 kg/day of ice cubes with an air condenser and 415 kg/day with a water condenser.

The complete cycle time is only approximately 15 minutes to 30 minutes, depending on water temperature and environment.

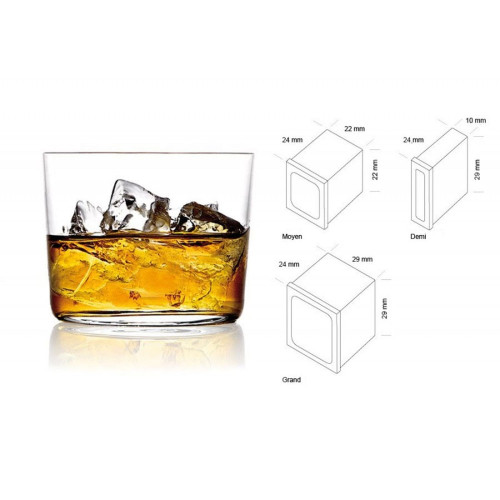

It is also possible to choose the size of the ice cubes (medium size as standard, half and large sizes on request).

It works with a TRI 380 V + N + T power supply.

Advantages of the Icematic M502 full ice maker

AGION Anti-Microbial System:

AGION's technology is based on the use of silver ions, a natural antimicrobial agent that is effective, safe, non-toxic and does not cause any irritation or allergy.

Under the effect of ambient humidity and thanks to an ion exchange process, silver ions are released, attacking bacteria and molds and preventing their growth.

The Agion coating guarantees long-lasting and safe protection of your machine without using polluting or toxic products.

Easy maintenance:

The water pan and pump are removable for easy cleaning of the ice maker.

The air filter is located on the side of the machine for better accessibility.

A new nickel-plated evaporator for better hygiene and greater defrosting efficiency.

Uniform and continuous jet technology:

Thanks to its new uniform and continuous jet technology, the water is distributed on arefrigerated surface specially designed to obtain a high production of full ice cubes.

The control panel is equipped with 5 LEDs which indicate:

1. Alarm, high pressure.

2. Alarm.

3. Full deposit/washing.

4. Functioning.

5. Sector

And a Reset/Wash button.

 Ref: M502IX

Sectors of use of the Icematic M502 full ice maker

Bars and lounge bars:

In bars, ice cubes are increasingly an essential and indispensable component for cooling drinks.

From aperitif to soft drinks, from cold tea to fruit juice, from squeezed lemon to centrifuged fruit or even simply water, the requirement is to always cool more and more and to keep the drinks cold that the customer drinks.

The Icematic full ice cube, thanks to its cubic shape and large surface in contact with the drink, ensures long-lasting cooling that perfectly meets consumer requirements.

In addition, in lounge bars the preparation of buckets and containers filled with ice cubes is very common to present bottles or cans of beer or other drinks, as well as the use of ice cubes in buckets to hold white wines. at the ideal temperature during the meal.

Resorts, tourist villages and cruises:

Holidays are synonymous with relaxation, fun and carelessness which very often take place in these places offering self-service food and drinks all day long: ice cream, always and everywhere, improves the quality of the service provided and contributes to complete customer satisfaction.

Fast food and discotheques:

Fast Foods are places where a lot of ice cubes are consumed: the large cardboard glasses lend themselves to being filled with good doses of ice cubes that enhance the drinks provided with straws; even then, with the same volume of drink, a voluminous glass increases the customer's sense of satisfaction.

Discotheques are also big consumers of ice cubes: full ice cubes, ice is essential in any type of consumption, from soft drinks to alcoholic drinks, from cocktails to smoothies.

There are also tubs for displaying beer bottles, ice buckets for champagne. The applications are endless...

Restaurants and hotels:

In restaurants, full ice cubes accompany the customer throughout the meal, from aperitif to digestive with the bucket full of cubic ice cubes which keeps the wine at the ideal temperature.

In hotels too, ice cubes are available and necessary in different places and times of the day: from the display of fruit, yogurts and juices for breakfast, to drinks in the various bars, from the catering service to the availability of ice cubes on the floors. for customers' requirements.

Technical sheet

Feed

Three-phase 380 V + N + E

Body

Stainless steel

Compositions

Stainless steel

Energy

Electric

Fluid

R-452a
R404a

Height (mm)

725mm

Width (mm)

760mm

Weight (kg)

98

Depth (mm)

620mm

Power

2350W

Production (kg/day)

465

Type of ice cubes

Full ice cubes

Storage type

Modular
