Positive cold room - Insulation 70 mm - Instaclack
-
£3,188.00 (ex VAT)
- Product Code:Positive cold room - Insulation 70 mm - Instaclack
Product Status : Pre-Order
Product Status : Pre-Order
C207C01L
NEW

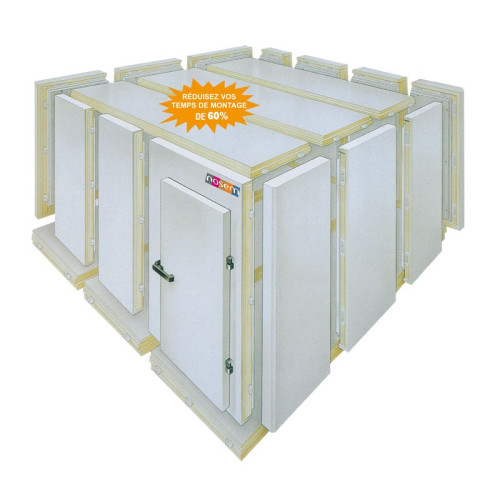

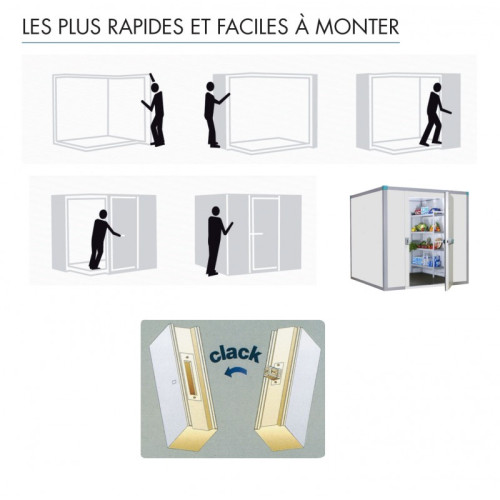

Positive cold room -5 / + 5 ° C with insulation of 70 mm andexternal height of 2070 mm . Equipped with the exclusiveINSTACLACK® assembly system, which allows installation in a very short time. In addition, this patented system guarantees a complete seal, as well as easy and trouble-free assembly and disassembly. A total volume of up to 51 m 3 on request.
Positive cold chamber (-5 / + 5 ° C) , with insulation 70 mm , delivered in kit and is easily installed thanks to its system INSTACLACK ® patented worldwide. INSTACLACK ® sandwich panels are formed by two steel sheets, completely profiled and protected against rust. Inside, they contain polyurethane foam injected at high pressure (CFC-free) and with a density of 42-44 Kg / m 3 . The structure of the foam (with billions of micro-cells) gives this material the best insulating characteristics. Swivel door (LXH) 800 x 1850 mm with key lock, internal unlocking system and opening direction to choose from. The standard lacquered floor of 100 mm thick with galvanized steel sheet with protective film. Possibility to have reinforced soil for heavy loads or passage of trolleys.
delivered without refrigeration unit and racking.

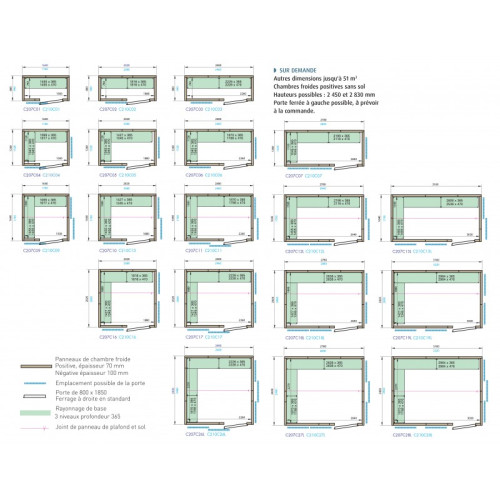

The various possible variations for the positive cold room -5 / + 5 ° C
Panels | Volume (M 3 ) | Internal dimensions | External dimensions |
| C207C01L | 2.11 | 1500 x 740 x 1900 | 1640 x 880 x 2070 |
| C207C02L | 2.64 | 1880 x 740 x 1900 | 2020 x 880 x 2070 |
| C207C03L | 3.18 | 2260 x 740 x 1900 | 2400 x 880 x 2070 |
| C207C04L | 3.19 | 1500 x 1120 x 1900 | 1640 x 1260 x 2070 |
| C207C05L | 4.00 | 1880 x 1120 x 1900 | 2020 x 1260 x 2070 |
| C207C06L | 4.81 | 2260 x 1120 x 1900 | 2400 x 1260 x 2070 |
| C207C07L | 5.62 | 2640 x 1120 x 1900 | 2780 x 1260 x 2070 |
| C207C09L | 4.28 | 1500 x 1500 x 1900 | 1640 x 1640 x 2070 |
| C207C10L | 5.36 | 1880 x 1500 x 1900 | 2020 x 1640 x 2070 |
| C207C11L | 6.44 | 2260 x 1500 x 1900 | 2400 x 1640 x 2070 |
| C207C12L | 7.52 | 2640 x 1500 x 1900 | 2780 x 1640 x 2070 |
| C207C13L | 8.61 | 3020 x 1500 x 1900 | 3160 x 1640 x 2070 |
| C207C16L | 6.72 | 1880 x 1880 x 1900 | 2020 x 2020 x 2070 |
| C207C17L | 8.07 | 2260 x 1880 x 1900 | 2400 x 2020 x 2070 |
| C207C18L | 9.43 | 2640 x 1880 x 1900 | 2780 x 2020 x 2070 |
| C207C19L | 10.79 | 3020 x 1880 x 1900 | 3160 x 2020 x 2070 |
| C207C26L | 9.70 | 2260 x 2270 x 1900 | 2400 x 2400 x 2070 |
| C207C27L | 11.34 | 2640 x 2270 x 1900 | 2780 x 2400 x 2070 |
| C207C28L | 12.97 | 3020 x 2270 x 1900 | 3160 x 2400 x 2070 |
On demand :
Other dimensions up to 51 m3. Positive cold rooms without floor. Possible widths: 2450 and 2830 mm. Door on the left possible, to predict the order.
| Height (mm) | 2070 |
| temperatures | Positives -5 / + 5 ° C |
