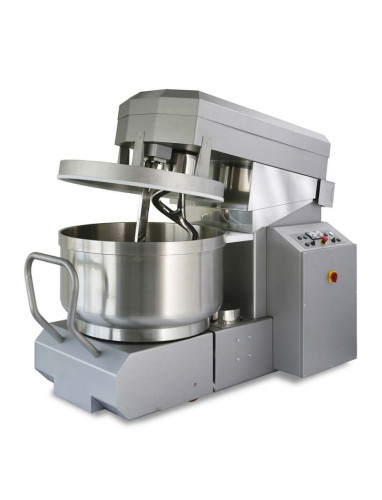

MAC PAN AUTOMATIC SPIRAL MIXER WITH REMOVABLE BOWL MSPA 130
-
£22,467.00 (ex VAT)
- Product Code:MAC PAN AUTOMATIC SPIRAL MIXER WITH REMOVABLE BOWL
Product Status : 21 Day lead time
Product Status : 21 Day lead time
MSPA
Three motors - Reversing direction of rotation bowl - Hydraulic movements - Two electronic timers
The automatic spiral mixer with removable bowl is equipped with automatic lifting and coupling.
RCEB: Tilting lift for removable bowl for table
RCET: Tilting lift for removable bowl for divider
The removable bowl automatic spiral mixer is an automatic lifting and engaging machine.
The automatic spiral dough mixer with a rolling bowl is equipped with an automatic lifting and locking mechanism (hook).
The working cycle can be manual or automatic with 2 speeds, as well as with programmed and preset recipes. In addition, you can change the rotation of the spiral in automatic mode. Belt drives reduce vibration and noise: this system provides significant savings in operating costs.
The two working speeds of the spiral ensure uniform and high quality dough.
The body of the machine is made of thick-walled painted steel.
The machine complies with the latest EU machinery directives.
The machine body is made of painted steel joinery.
Speaker
Column, tank, spiral and protective grid are completely made of stainless steel.
Duty cycle M / A
Duty cycle can be manual or automatic with two speeds, both 2SPEED with timers
Automatic cycle regulation
It is also possible to reverse the direction of rotation of the tank even during an automatic cycle.
Transmission with two motors
The dual motor transmission uses trapezoidal belts to minimize vibration and noise.
Hydraulic movements
Hydraulic movements.
Removable reservoir
Model MSPΑ 80 MSPΑ 130 MSPΑ 160 MSPΑ 200 MSPΑ 250 MSPΑ 300 MSPΑ 400 Dough xapacity (Kg) 80 130 160 200 250 300 400 Flour capacity (Kg) 50 80 100 125 150 190 250 Bowl capacity (Lt) 142 216 273 326 368 455 620 Bowl (εκ.) 70 80 90 100 100 110 120 Bowl 1a (rpm) 16 16 16 16 16 16 16 Spiral 1a/2a (rpm) 100 / 200 100 / 200 100 / 200 100 / 200 100 / 200 100 / 200 100 / 200 Power consumption (kW) 6.1 7.2 7.75 9.7 12.2 16.8 20.0 Spiral motor (kW) 2.4/4.4 3.0/5.2 3.7/5.9 4.5/7.8 5.9/10.3 9.0/15.0 11.0/18.0 Dimentions (ΜxΒxΥ) 165x95x125 175x103x135 185x108x135 189x112x137 195x115x137 230x130x170 238x135x170 Weight Kg 810 894 940 1200 1250 1720 1800
