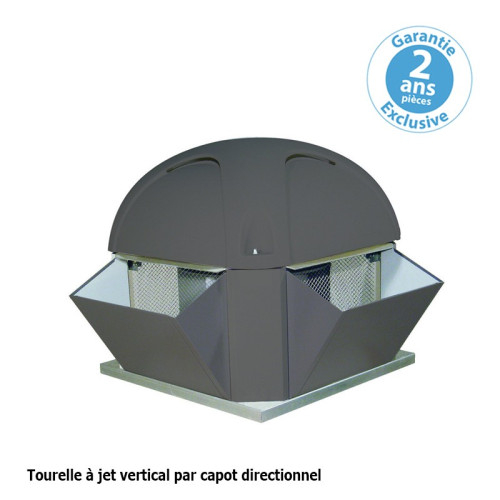

Furnotel - 2 speed turret - Three phase - Horizontal or vertical discharge
-
£1,981.00 (ex VAT)
- Product Code:Furnotel - 2 speed turret - Three phase - Horizontal
Product Status : 2-3 Days
Product Status : 2-3 Days

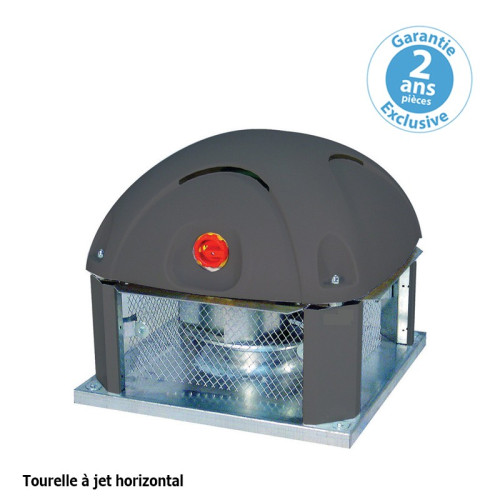

This three-phase 2-speed turret with horizontal dischargefrom Furnotel with turbine-motor assembly mounted on a plate and supported by 4 feet, systematic balancing control by vibration measurement, motor protection by hood provided with 4 openings for motor ventilation, M disconnector / Factory fitted (to be wired on site), anti-volatile protective mesh
This three-phase two-speed turret with horizontal discharge from Furnotel , it is equipped with a turbine-motor assembly mounted on a plate and supported by 4 feet, a systematic balancing control by measuring vibrations, motor protection hood fitted with 4 openings for motor ventilation, a factory-fitted M / A disconnector (to be wired on site), anti-volatile protective mesh , a turbine : balanced galvanized steel reaction wheel statically, with aluminum hub , of a flanged motor , IP55 protection, class F three-phase, of a base, feet, plate,galvanized steel grid , column covers in pre-painted sheet metal , of a motor cover in colored polyethylene RAL7015. Voltage 400/3 / T.
| Parts warranty | 2 years |
| Food | Tri 400 V + N + T |
| Power (W) | 2200/550 |
| Debit | 7000 m3 / h at 500 Pa |
| Frequency | 50 Hz |
| Type | 56/6 - 8 poles |
| Intensity | 4.84 / 2 A |
