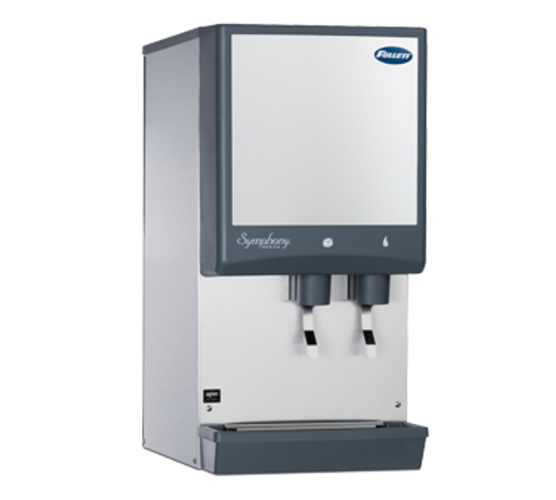

Follett LLC E12CI425A-L 16.12" Symphony Countertop Air Cooled Ice Maker and Dispenser - 230 Volts 1-Ph
-
£8,506.00 (ex VAT)
- Product Code:Follett LLC E12CI425A-L 16.12" Symphony Countertop
Product Status : 21 Day lead time
Product Status : 21 Day lead time
With the Follett E12CI425A-L Ice & Water Dispenser, produce large amounts of fresh ice that can be accessed easily! With the ability to produce up to 425 pounds of ice every day, you will never run out of ice in hotels, bars, and cafés.
5.4 kg
(12 lb)
Temperatures
air/water
21/10 C (70/50 F) 32/21 C (90/70 F)
Air-cooled 176 kg (388 lb) 137 kg (301 lb)
Energy
consumption
per 45.4 kg
(100 lb) ice
N/A 6.0 kWh air-cooled
Water
consumption
45.4 L (12.0 gal) of potable water per 45.4 kg
(100 lb) of ice
Product Highlights
- Constructed of stainless steel
- Can produce 425 pounds of ice
- Countertop unit
- Can store 12 pounds of ice
- With lever dispense
- Features
Narrow, 40.9 cm (16.12") width
5.4 kg (12 lb) ice storage capacity
Integral air-cooled ice machine with up to 176 kg (388 lb) daily
production of Chewblet ice
- soft, chewable, compressed nugget ice is preferred over cubes1 and is
ideal for patient care
- sleep cycle turns off ice machine when idle
Designed with sanitation in mind
- automatic self-flushing of ice machine removes impurities
- drain cup provides internal air gap for added protection of food zone
components from drain line contaminants
- Agion®
silver-based antimicrobial provides protection of key ice and
water contact components2
- one-hand lever or SensorSAFE infrared ice dispense
Dependable design, easy to service and clean
- cleaning and sanitizing of entire machine takes only 1 hour
- LED control board provides at-a-glance machine status
- panels are easily removed for accessibility to all components
- ice machine parts are common across all Symphony Plus dispensers
- stainless steel evaporator and auger deliver long life
Environmentally responsible
- R290 refrigerant
- continuous ice making process uses less electricity and water
Durable, attractive dispenser
- stainless steel cabinet with accent trim
- poly drain pan, grille and dispenser lid are corrosion-resistant
Easy installation
- comes fully assembled and installs with three easy connections –
electric, water and drain - Specification
Ice storage capacity 5.4 kg (12 lb)
W1 Width 40.9 cm (16.12")
W2 Width, base stand accessory 44.4 cm (17.50")
D1 Depth, entire dispenser 59.7 cm (23.50")
D2 Depth, drain pan 13.97 cm (5.50")
D3 Depth, base stand accessory 55.9 cm (22.00")
H1 Height, dispenser 82.6 cm (32.50")
H2 Dispense height clearance 23.83 cm (9.38")
H3 Height, base stand accessory 83.8 cm (33.00")
H4 Height, leg kit accessory 93.1 cm (36.64")
Ventilation clearance 15.24 cm (6.00") top and right side
Service clearance 30.5 cm (12.00") top
Utility connection location through back or bottom
C1 230 V/50/1 electrical 5.5 amps, 0.8 kW
2.4 m (8') cord only
C2 Potable water inlet 3/8" FPT
C3 Drain 3/4" MPT
Ice production at
70 F (21 C) air,
50 F (10 C) water
176 kg (388 lb)
Ice production at
90 F (32 C) air,
70 F (21 C) water
137 kg (301 lb)
Heat rejection 5000 BTU/hr
Air temperature 10 - 38 C (50 -100 F)
Water temperature 7 - 32 C (45 - 90 F)
Potable water pressure 69 - 483 kpa (10 - 70 psi)
Refrigerant R290
Approximate net weight 65 kg (144 lb)
Approximate ship weight 90 kg (199 lb)
Approximate ship weight,
base stand accessory
36 kg (80 lb)
Warranty
- 3 years parts and labor, 5 years compressor parts3
Accessories
Base stand with or without factory installed water filter
(refer to form# 7010)
10.16 cm (4.00") leg kit (item# AF10LBLEGS)
Pressurized water sanitizing kits (refer to form# 6830)
Water filters (refer to form# 9905)
