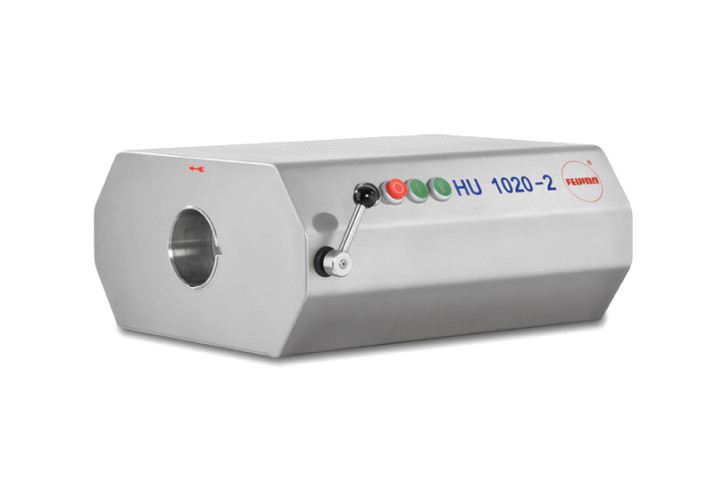

FEUMA drive unit AE 20-2 basic version for HU 1020-2 universal commercial kitchen machine

Product Status : 21 Day lead time

The high-performance universal commercial kitchen machine HU 1020-2 is a modern, universal multi-purpose kitchen machine for processing vegetables, fruit and meat. The HU 1020-2 guarantees a high throughput coupled with safe operation and the best processing results.
German quality manufacturer - Professional technology for intensive use!

The modern fruit, vegetable and meat processing machine

• Basic version - Not electrically adjustable in height
• Keyboard switch for 2 speeds, 178 / 356 rpm and pulse level
• Stainless steel housing, with stainless steel slip-on coupling
• Switching device for cutting attachment SAS-SG with switched pressing device
• automatic switching on after a power failure is excluded
• quick lock
• Device detection and circuit breakers with self-monitoring
• clear button elements accessible from all sides
• maintenance-free, reliable and powerful branded motor
• integrated motor protection against overload
• incl. connection cable 4.5 m with 5-pin CEE plug, 16 A
• The delivery of complete machines of the TYPES SUPRA 6e or HU 1020-2 includes commissioning and instruction at the end customer (only in Germany)

Technical data:
Material: stainless steel housing
2 speeds 178/356 rpm and pulse
switch Connected load: 400 volts, 50Hz, 3P+N - power 1.3/1.9 kW

The following attachments are available for the AE 20-2 drive unit for the HU 1020-2 universal machine

• Working housing AG-SG/E for AE 20-2 cpl. Stainless steel: complete with gear, tool holder and removable discharge funnel. stainless steel
• Cutting attachment SAS-SG for AE 20-2: with magnetic safety device, stainless steel, incl. switched pressure device and tamper, is placed on the working housing AG-SG only in connection with drive unit AE 20-2
• Hopper attachment TR-SG for AE 20-2: with magnetic safety device, stainless steel, for the continuous processing of larger quantities, the use of disks and cylinders is possible, is placed on the working housing AG-SG
• Meat and vegetable grinder R 70 can only be used with adapter art. no
  .
• Meat grinder FW 82 GSF WS: with magnetic safety device, incl. 5-blade set, diameter 82 mm (consisting of pre-cutter, 2 cross knives, 13 mm perforated disc and 5 mm perforated disc), 18 mm and 36 mm insert ring, plastic tamper and pull-out hook, housing , screw, bowl and locking ring stainless steel, output approx. 400 kg/h
• Meat and Separating Grinder - SWF 82: Knife steel cutting set, incl. cutting set diameter 82 mm, stainless steel housing, auger, bowl and locking ring, plastic tamper and pull-out hook, output approx. 300 kg/h with 5.0 mm perforated disc
• Machine cabinet 500 - AE 20-2 E:   Drive integrated in a work block, for using all components of the high-performance universal commercial kitchen machine, 500 x 700 x 850 mm (L x W x H), with stainless steel plug-on coupling and sound insulation, with drawer pull-out for GN Container 1/1-150, electrical equipment as for drive unit AE 20-2
  , different dimensions: on request
• Meat steaker FS-S: with magnetic safety device, complete with gear part, compact steaker knife roller set, stainless steel housing and plastic tamper
• Planetary, stirring and beating mechanism (20 l) UP 20-S : with magnetic safety device, complete with
  20 liter stainless steel bowl, incl. 1 beater, 1 whisk (stainless steel wires), 1 spiral kneading hook (stainless steel), incl. protective hood
  Processing quantity: up to 10 kg
• Planetary, stirring and impact mechanism (40 l) UP 40-S : 40 liter stainless steel kettle, otherwise features as UP 20-S
  with additional stirrer (stainless steel) and splash protection ring Processing quantity: up to 25 kg
• Planetary, stirring, impact and kneading tool UP 10 can only be used with adapter item no. 542400
• Planetary, stirring, beating and kneading tool UP 15 can only be used with adapter item no. 542400
• Poppy seed mill MM : with safety circuit, for grinding poppy seeds for various baked goods and desserts Output
  : approx. 45 kg/h
• Transportable collection container TA: mobile, 3 rubber castors (2 fixed castors, 1 steering castor), one lockable castor, removable container made of stainless steel, 30 liter capacity, 84 cm handle height
