Dryflow® Bi-Tap Soap & Water Sensor Tap
-
£450.00 (ex VAT)
- Product Code:Dryflow® Bi-Tap Soap & Water Sensor Tap
Product Status : 21 Day lead time
Product Status : 21 Day lead time

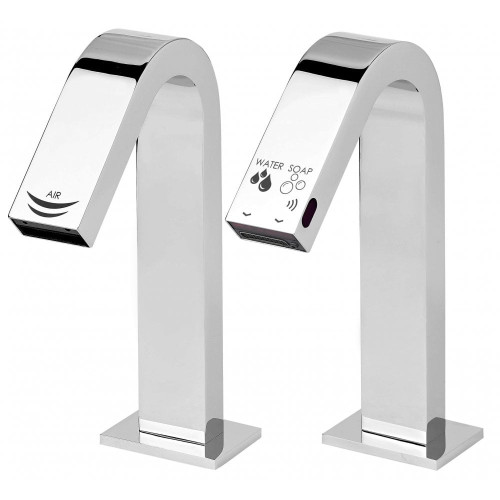

This product can be used as a stand-alone item but also forms part of the Dryflow Bi-Tap series IFSUCM092A-ANON which includes an over the sink hand dryer.
There’s also a 3-product series available in this range as a wall mounted option.

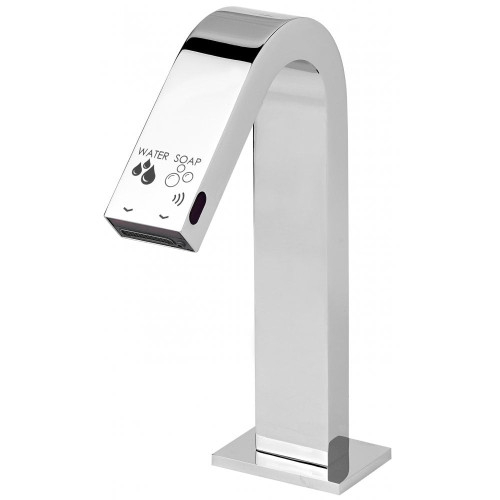

The elegant deck mounted Dryflow Bi-Tap Soap & Water Sensor Tap provides a dual purpose product, allowing both water and soap to be dispensed from the same unit. A real space saving item in many ways.
When combined with the Dryflow Bi-Tap hand dryer, every part of the hand washing experience can be made effortlessly over the sink.
A high-quality, robust product that we would recommend for mid to high traffic areas (300-500 uses per day).
The unit comes equipped with the ability to choose the power supply with it using either battery operation or via the mains.
The sensor operation allows everything to be touch free, preventing cross contamination and a much more efficient use of water and soap.
Water
A low flow rate of 5.7lpm is enhanced by the inclusion of an aerator and flow control.
This chrome finished, high quality brass tap can provide both cold or premixed warm water.
It is suitable for a range of differing washrooms as it can withstand water pressures between 0.5 and 8bar.
Soap
This tap is suitable for soaps with 100-3500 cP viscosity and with neutral pH.
A generously sized tank of 1.5L means that reservoirs will last a long time between refills.
An anti-drip valve is provided as standard which prevents mess and unnecessary waste.
It is possible to adjust the amount of soap delivered at each application to also minimise waste.
The 4 settings allow a shot of soap at either 0.5ml, 1ml, 1.5ml or 2ml
Technical Description

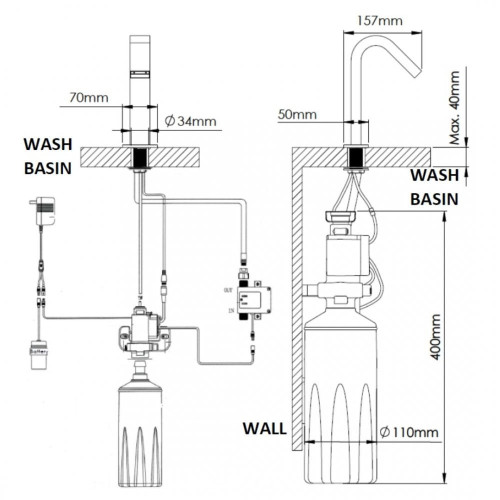

Dryflow Bi-Tap Soap & Water Sensor Tap is a deck mounted, infra-red brass water and soap dispenser with polished chrome finish. Battery operated using 4 X 1.5 AA batteries or mains supplied using the included 220-240V power adapter. Recommended minimum cold or premixed warm water pressure is 0.5 - 8 bar. A 3 bar pressure gives a flow rate of 5.7lpm. A connector size of 1/2” is required. Liquid soap with 100-3500 cP viscosity and with neutral pH is recommended. A 1.5L tank can be adjusted so that a shot of soap can be either 0.5ml, 1ml, 1.5ml or 2ml. The full Dryflow Bi-Tap series includes a deck mounted hand dryer and water/soap dispenser for a complete over the sink wash and dry experience.
- Operation: Battery or Mains supply (4 X 1.5 AA batteries or 220-240V power adapter included)
- Flow rate at 3 bar: 5.7 lpm
- Guarantee: 2 years
- Type of water mixing: Cold or premixed via Thermostatic Mixer
- Connector: 1/2"
- Mounting: Deck mounted - hole Ø 33-35mm
- Minimum/Maximum flow pressure: 0.5bar / 8bar
- Soap: 1.5L capacity | 4 settings: 0.5ml, 1ml, 1.5ml or 2ml per shot dispensed | 750, 1000, 1500 or 3000 shots per refill
- Part of the Dryflow Bi-Tap series (soap, water and hand dryer all over the sink)
- https://www.intelligenthanddryers.com/downloads/63fdfeb344cee127Spec_Sheet_-_Dryflow_Bi-Tap_Wash_&_Dry_Series_(PDF).pdf
