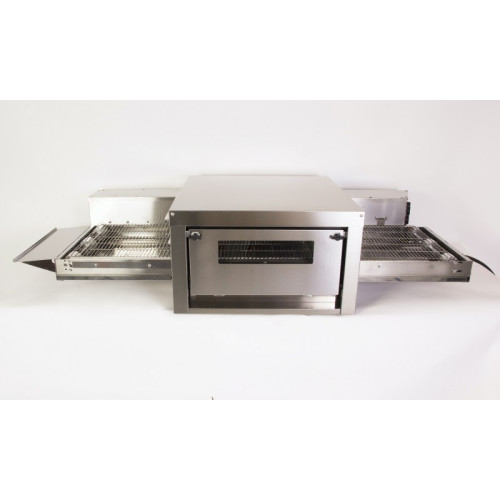

Dosilet CONVEYOR PIZZA OVEN TT6600 PL1400 DOSILET

Product Status : 21 Day lead time

DOSILET TT6600PL1400 Conveyor Pizza Oven . TT PIZZA range. Suitable for continuous use.

Features:

– Stainless steel
– Belt conveyor guides 2 mm thick
– Horizontal discharge
– Time and speed regulator
– Radiation from below to above, specific for pizza, with 6 levels of power each zone
– Automatic detection of product load by a photocell in Mode ECO to save up to 65% of the electrical consumption
– Thermal insulation of the cooking chamber
– Inside light, view folding window, support tray at end of run, adjustable head room and stacking kit included
– Double crumbs tray (TT6600 Pizza, TT9000 Pizza)
– One central and two lateral crumbs trays (TT13500 Pizza, TT24000 Pizza)
– Feet adjustable in height

Personalization options:

– Powers: from 6,6 kW to 24 kW
– Voltages: 230V (TT6600 Pizza) y 400 V
– Conveyor width: from 420 to 850 mm
– Conveyor length: from 1.400 to 1.800 mm
– Power and time ranges

Extras:

– Custom-made tray at start/end of run
– Stacking kit
– Bases with wheels (30 and 60cm height)
– Perforated trays: circular (Ø: 25, 30, 35 y 40cm) and rectangular (176 x 325 x 200mm, 353 x 325 x 200mm and 530 x 325 x 200mm)

• Dimensions (LxWxH): 1400 x 620 x 350 mm (excluding product reception tray)
• Conveyor belt width: 420 mm
• Entrance height: 100 mm
• Power supply: 400V Tri. Power: 6.6kW
• Weight: 32kg
• Stainless steel
• Conveyor grid spacing: 2 mm
• Time and speed regulators
• Bottom-up cooking, specific for pizza, with 6 power levels for each zone
• Automatic load detection by photocell to reduce energy consumption (up to -65%)
• Thermal insulation of the cooking chamber
• Window with interior view of the product being cooked
• Input and output trays included, stacking kit included
• One center and two side crumb catcher drawers
• Height adjustable feet
• High Productivity
•


  Pizzas production per hour

  Reference	Φ = 250 mm		Φ = 300 mm		Φ = 350 mm		Φ = 400 mm
  	min.*	MAX.**	min.*	MAX.**	min.*	MAX.**	min.*	MAX.**
  TT6600 PL1400 230v	71	35	52	26	44	22	38	19
  TT6600 PL1400 400v	71	35	52	26	44	22	38	19
  TT9000 PL1400	144	72	100	50	58	29	47	23
  TT13500 PL1800	240	120	167	83	97	49	78	39
  TT24000 PL1800	360	180	300	150	180	90	150	75

  * Cooking time = 2 mins
  ** Cooking time = 4 mins
