DOLPHIN INFRARED URINAL FLUSH VALVE KIT (PROXIMITY SENSOR) DB620C / DB620S / DB625C / DB625S
-
£260.00 (ex VAT)
- Product Code:DOLPHIN INFRARED URINAL FLUSH VALVE KIT
Product Status : 2-3 Days
Product Status : 2-3 Days
- Touch Free Proximity Sensors – eliminates cross contamination. Senses when user is present and flushes urinal when user walks away
- Direct flush does not incorporate or work with cistern, this saves the bacteria growth associated with stored water
- Needs a 15mm feed
- It is recommended that a vacuum breaker is used in conjunction with these products or otherwise as stipulated to comply with local water regulations
- Vandal resistant, ideal for educational institutions, detention centres, train stations
- Infrared urinal flush sensor
- Complies with the following certifications; WRAS
- Settings are adjustable using remote control (DB51) or manually
- Sensor features a low battery level indicator
- Mandatory Hygiene Flush recommended and available – please specify when ordering
- Pressure: 0.5 - 8.0 bar (7-116 PSI)
- Powder coated finish available – please enquire with the team
- Flow rate unrestricted as standard with flow time set to 6 seconds as default (adjusted between 1 second min – 20 seconds max)
- The flow rate can be regulated by fitting a flow regulator and the flow time can be adjusted by using a remote control – both can be purchased from Dolphin
- DB620C Mirror polish finish - powered by 9v Battery
- DB620S Satin finish - powered by 9v Battery
- DB625C Mirror polish finish - powered by 9v Transformer
- DB625S Satin finish - powered by 9v Transformer
- Mirror Polished Chrome Plated Brass or Satin Brushed Chrome Plated Brass (please stipulate at checkout)
https://www.dolphinsolutions.co.uk/hideout-app/app-uploads/2020/08/DB620C-_-DB625C-Datasheet-Oct-21.pdf

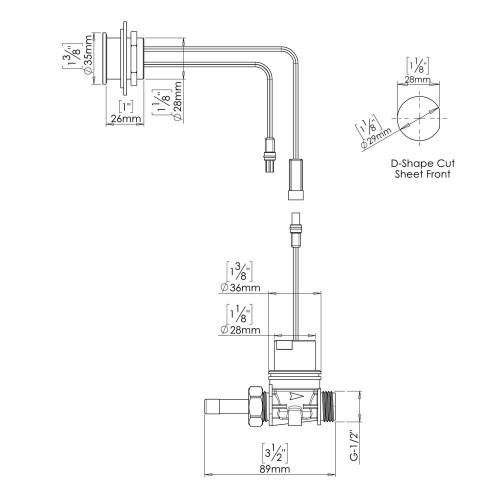

https://www.dolphinsolutions.co.uk/hideout-app/app-uploads/2020/04/DB620-Drawing.pdf
