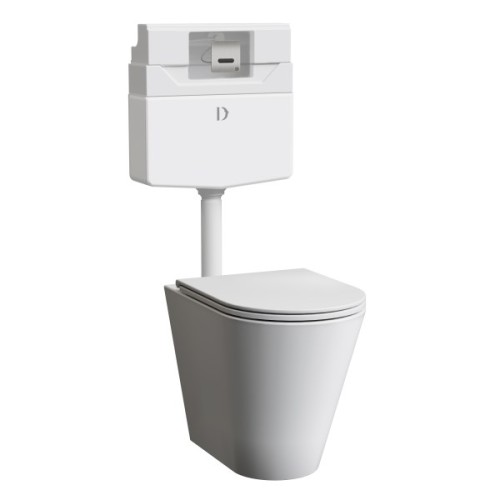

Dolphin Floor mounted WC set – Electronic DC3030
-
£1,190.00 (ex VAT)
- Product Code:Dolphin Floor mounted WC set – Electronic DC3030
Product Status : 21 Day lead time
Product Status : 21 Day lead time
Details
- Full set with all items included for a working WC
- Declarations of permformance and conformity
- Electronic actuation flush
- Flush plate available in brushed stainless steel, powder coated in any RAL colour, or ceramic coated
- Must be installed above the height of the opened toilet seat and seat cover to avoid false activation issues
- Pan & cistern weight tested to 400KG
- WRAS approved
- Compliant with DEFRA Interim agreement
- EN14055 Class two compliant
- Working pressure: 0.1 to 16 bar
- Automatic dual flush (flush activated when user moves away from the toilet) 6l as standard, adjustable to 4.5l or 4l
- Designed to be hardwired into 240v circuit - no battery option available
- Optional bluetooth connection to Dolphin App or gateway device (to take you to Dolphin cloud or BMS) to provide setting possibilities, diagnosis and usage statistics
- Opening in the final wall finish should be cut to the size of the flush plate, not to the size of the cistern opening
- DB5510.E Electronic cistern and frame
- DC2006 Floor mounted toilet pan and seat
- DB5570.E.1 Brushed satin electronic flush plate
- https://www.dolphinsolutions.co.uk/hideout-app/app-uploads/2023/08/DC3030-Datasheet-20240321.pdf
- https://www.dolphinsolutions.co.uk/hideout-app/app-uploads/2024/03/DC3030_DoP-1050-997-CL2-DB55xx.pdf
