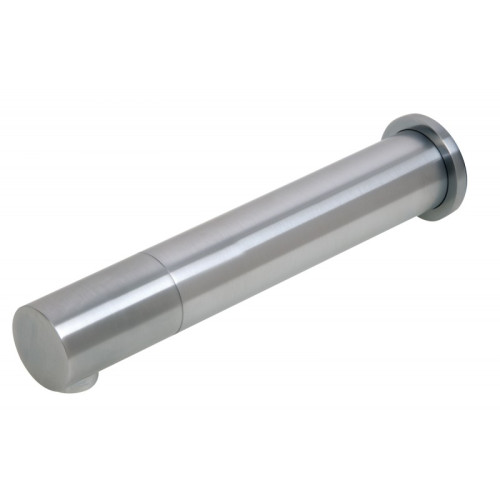

Dolphin Blue Panel Mounted Electronic Infrared Tap - Long series DBL400
-
£699.00 (ex VAT)
- Product Code:Dolphin Blue Panel Mounted Electronic Infrared Tap
Product Status : 2-3 Days
Product Status : 2-3 Days
DBL400 Dolphin Blue Panel Mounted Electronic Infrared Tap - Long series
- Touch Free Tap – for ultimate hygiene – prevents cross contamination
- Quality polished or brushed chrome plated brass finishes available
- Water Supply: Single inlet – cold or pre-mixed – a TMV2 or TMV3 thermostatic mixing valve is recommended for premixed applications
- Flow rate – as standard 1.0 GPM(US). 0.5 GPM(US) also available to special order along with many other options. If 0.5 GPM(US) flow rate is required specify please specify, in addition to the tap, an upgrade as follows: DB STD Aerator Upgrade to 0.5 GPM(US) spray DBAU001
- Flow time once user's hands are removed from the tap - 1 second (adjustable by using remove control DB51)
- Interchangeable STD M22/24 Neoperl Aerator insert
- Exceeds the BREEAM requirements for taps for a maximum flow rate of less than 6 litres per minute (LPM) at a water pressure for 0.3 mega pascals (MPA)
- Power Source: Plug-in 9 Volt transformers or 9 Volt Battery (with low battery warning)
- Tap settings including optional hygiene flush can be adjusted by using remote control (DB51)
- Mandatory Hygiene Flush feature can be specified to combat Legionella
- WRAS Approved Product
- 2 year manufacturer’s warranty
- Maximum water temperature 70ºC
- Operating pressure 0.5 - 8.0 bar (7 - 116 PSI)
- Power Connections: tap female, power source male
- Complies with SKA rating criteria
Codes:
Polished Chrome / 6 x AA Battery tap - DBL400C
Brushed Nickel / 6 x AA Battery tap - DBL400S
Polished Chrome / 9v Transformer tap - DBL425C
Brushed Nickel / 9v Transformer tap - DBL425S
