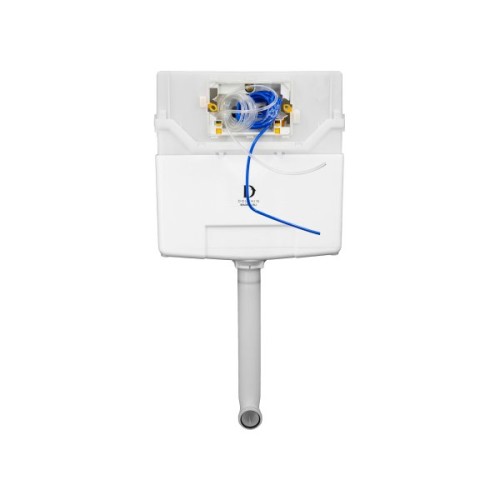

Dolphin Blue 126MM Pneumatic Cistern – No Frame DB5510.P
-
£205.00 (ex VAT)
- Product Code:Dolphin Blue 126MM Pneumatic Cistern
Product Status : 2-3 Days
Product Status : 2-3 Days
- Concealed WC Cistern without Frame
- Working pressure: 0.1 to 16 bar
- WRAS approved inlet valve
- AUK1 Backflow arrangement
- Flush cistern to be installed inside the wall and used in combination with floor standing WC pan
- EN14055 Class two compliant
- Designed for use with our DB5550.P pneumatic flush plate (not included)
- Compliant with DEFRA Interim agreement when used with our DB590 and DC2006 toilet pans
- Dual flush in-wall cistern compatible with dual flush actuators 6/3 litres (adjustable to 4.5/3 or 4/2.6)
- 126mm thickness
- Pneumatic actuation
- Fitted with delayed refilling inlet valve, (saves up to 9 litres of water per day)
- Inlet valve compliant with BS1212-4:2016
- Resistance to atmospheric humidity (Hr <90%).
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress
- EN 14055 marking CL2
- Supplied with anti-condensation lining
- Net for easier mortar adhesion
- Opening in the final wall finish should be cut to the size of the flush plate, not to the size of the cistern opening
- Watch a video - Dolphin Cistern Installation Video
