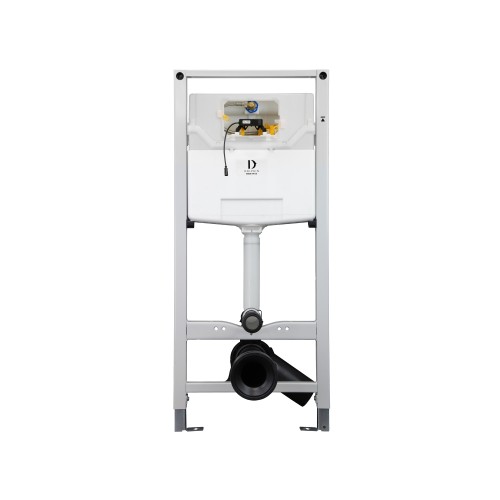

DOLPHIN BLUE 126MM ELECTRONIC CISTERN – 1150MM FRAME DB5511.E
-
£340.00 (ex VAT)
- Product Code:DOLPHIN BLUE 126MM ELECTRONIC CISTERN
Product Status : 2-3 Days
Product Status : 2-3 Days
- Concealed WC Cistern and Frame
- Working pressure: 0.1 to 16 bar
- WRAS approved inlet valve
- AUK1 Backflow arrangement
- WRAS and EN14055 Class two compliant
- Designed for use with our DB5570.E and DB5580.E automatic flush plates (not included)
- Compliant with DEFRA Interim agreement when used with our DC2005 or DC1300 toilet pans. Not compatible with our DC2006 or DB590
- 126mm thickness
- Electronic actuation
- In painted profile corrosion resistant
- Minimum thickness of 126mm and adjustable up to 170mm
- Height regulation of the adjustable floor brackets (0-200 mm);
- Depth adjustable outlet bend
- Tested for 400kg load
- Dual flush in-wall cistern compatible with dual flush actuators 6/3 litres (adjustable to 4.5/3)
- Equipped with delayed refilling inlet valve, (can save 9 litres of water per day) and according to BS1212 4:2016
- Resistance to atmospheric humidity (Hr <90%).
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress
- Supplied with anti-condensation lining
- Pre-assembled structure for installation in front of masonry wall and finish in light wall, plasterboard wall and technical support rail for light wall
- Opening in the final wall finish should be cut to the size of the flush plate, not to the size of the cistern opening
- Watch a video - Dolphin Cistern Installation Video
- https://www.dolphinsolutions.co.uk/hideout-app/app-uploads/2021/09/DB5511-E-Datasheet-20240103.pdf
- https://www.dolphinsolutions.co.uk/hideout-app/app-uploads/2022/09/Dolphin_DB5511E_Assembly-Instructions_Jan2023.pdf
