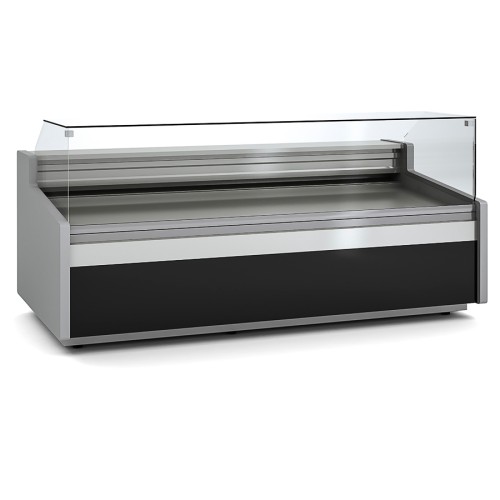

Docriluc Refrigerated Display Case with Storage VE-9-25-RCB
-
£3,599.00 (ex VAT)
- Product Code:Docriluc Refrigerated Display Case
Product Status : 4-6 Week Lead Time
Product Status : 4-6 Week Lead Time
Refrigerated Display Case with Storage for Butcher Shop and Delicatessen, Straight Glass, Static Evaporator, JUNIPER VE-9-RCB Series, 2465x960x1150h mm, VE-9-25-RCB Docriluc
Refrigerated Display Case with Storage for Butcher Shop and Delicatessen, Straight Glass, Static Evaporator, JUNIPER VE-9-RCB Series, 2465x960x1150h mm, VE-9-25-RCB Docriluc
Exterior and interior in plastic-coated steel sheet.
Display surface, countertop and upper decoration in ISI-304 stainless steel.
Smooth display surface trays, with step on request.
30 mm sides in injected ABS, except model VES-10E-RC with 20 mm thick panoramic side glass
. Anodized aluminum profiles.
Refrigerated storage (except neutral and non-VES models), with doors and 440x270mm opening.
Injected polyurethane insulation, 40 Kg/m³ density, low GWP and zero ODP.
Display compatible with GN pans (not included).
Model HE: Dry heat.
Model BM: Water bath (humid). Water inlet and outlet connection required.
Model ES: Refrigerated pans
. AISI-304 stainless steel worktop.
Interior in AISI-304 stainless steel sheet.
30mm thick injected ABS sides.
Equipped with drawer, shelves, and socket.
Interior in pre-painted steel sheet
. Sides, base, and top in water-resistant MDF + PVC or high-gloss lacquer.
Side and front glass panels.
4 tilt-adjustable glass shelves.
LED vertical lighting.
Standard LED lighting: front decoration, top worktop, and shelves (depending on model)
. Static cooling system except TF models with a ventilated system.
AP45/AN45 neutral angles.
HE/BM hot models with heating elements.
Evaporator with anti-corrosive epoxy coating.
Standard ventilated condensation and automatic evaporation.
Pre-installation models include solenoid and expansion valves for R-449A.
Optional R-134a (Consult for other refrigerants).
Electronic temperature control.
Includes auxiliary socket with a maximum load capacity of 500W.
Automatic defrost, optional electric defrost on static evaporator
. Epoxy-finished steel chassis.
Tempered glass and hinged front, except for model VE-10E with a lift-up front.
Intermediate glass shelf with lighting. Non-refrigerated. (Depending on model)
Joining kits: For special installations, linear and angles (Consult for details)
MODEL VE-9-25-RCB

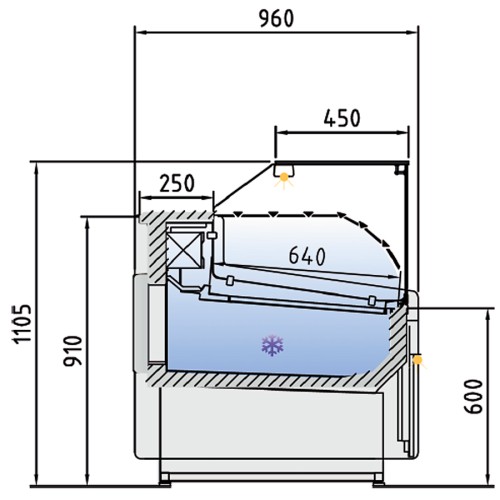

Dimensions 2465x960x1105h mm
Display Area (m2) 1.92
Total Area 1.90
VE 759 Chamber
Doors 4
Cooling Capacity (W) 1284
Nominal Consumption (W) 1298
Refrigerant R-290
