Disperator 515A-MC 440/3PE/60 Marine

Product Status : 21 Day lead time

Heavy duty free standing according to EN1717
disposer for continuous
feed of food waste
Ready to use at delivery, only
to connect to existing cold
water, drain and electricity
Disposer outlet can be
positioned to suit existing
drain installation
Compliant with
MARPOL 2019 ANNEX V
for disposal from ships of
ground food waste into the
open sea

Disperator food waste disposers are used in
galleys and kitchens around the world, providing
an efficient and immediate removal of food waste
whenever it arises. Thereby improving hygiene in
the working environment, eliminating bad odors
and bacteria formation and minimizing manual
handling.
The quality grinding unit with hardness from
specially cast steel alloy, together with the unique
sealing design between grinder and motor, ensure
years of reliable operation and low maintenance
cost. The disposer’s life span is extended
further by the outer housing of stainless steel
EN 1.4301 (AISI 304) and protection class IP55 or
higher for electrical components.

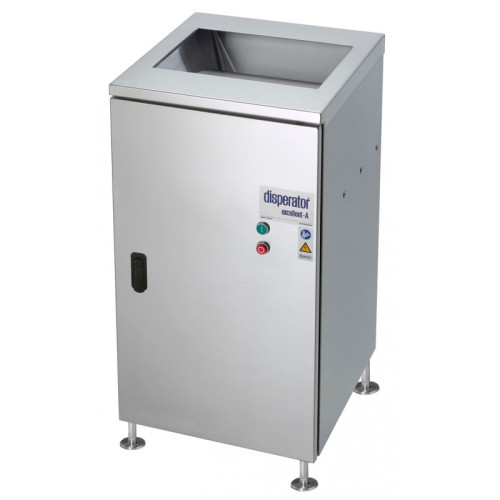

The MC-cabinet with integrated food waste disposer
isinstalled as a separate unit, eliminating mounting
into existing interior, and is delivered ready to be
connected to existing flushing water, drain pipe
and electricity. If needed, it is possible to adjust the
disposer’s outlet to better fit the existing piping.
The wide range of disposer sizes makes it easy to
adjust any installation to fit any workplace in a
galley or kitchen.

The 500A-MC series is CE marked and in
accordance with the safety requirements
of the EU Machinery Directive 2006/42/EG,
EMC Directive 2014/30/EG and Low Voltage
Directive 2014/35/EG. A labyrinth protection guard
preventing accidental access to the grinding unit
during operation. The guard is fitted with a safety
interlock switch which stops the disposer when
lifted. The partially covering lid enables feeding at
a continuous and even rate, which is particularly
advantageous at workplaces where food waste
occurs frequently or in larger quantities.
Factory-fitted flush water nozzles (see photos above
for marine or land based version) is connected to
cold water via a solenoid valve and a line strainer that
opens automatically when the disposer is started,
which flushes the food waste into the grinder and
after grinding further continue into the sewer system
or connected tank.
All Disperator Excellent 500-Series of disposers have
the Statement of Compliance issued by DNV GL
verifying compliance with applicable sections of
MARPOL Annex V REGULATIONS FOR THE CONTROL
OF POLLUTION BY GARBAGE FROM SHIPS AND
PLATFORMS, as amended in 2019.

Technical specification 510A 515A 520A 530A 550A 575A
Normal capacity , kg / hr 300 400 500 700 850 1000
Electrical power, kW 0,9 1,25 1,8 2,5 4,0 5,5
Rated current, A to be set on the disposer motor protector for the followning voltages:
400 V / 3-ph. / 50 Hz 2,2 2,7 3,7 5,5 9,0 12,0
440 V / 3-ph. / 60 Hz 2,2 2,7 3,7 5,5 7,5 10,0
480 V / 3-ph. / 60 Hz 2,2 2,7 3,7 5,0 7,5 10,0
Other 3 ph. voltage available Models 510A and 515A are also available in 1-phase 220-240V, 50 / 60Hz.
Control voltage For marine installation the same as motor voltage, for land installation 230V / 50Hz
Fuse rating, slow 10 A 10 A 10 A 16 A 16 A 16 A
Characteristic for automatic fuse D (slow) D (slow) D (slow) D (slow) D (slow) D (slow)
Disposer drain outlet G2” (BSPP), internal thread G21⁄2” (BSPP), internal thread
Height of disposer outlet, (a) a = 485-551 a = 450-516
Height of disposer water trap, (b) b = 397-463 b = 362-428
Gross / net weight, kg 69 / 60 71 / 62 74 / 65 85 / 76 88 / 79 93 / 84
