Product Status : 21 Day lead time

Cruise Ship

Cruise ships often voyage in special areas protected by the International Maritime Organization (IMO). Within the special areas discharge of ground food waste into the sea is only permitted while the ship is en route and not less than 12 nautical miles from land. The food waste must be ground in a food waste disposer before discharge, and capable of passing through a screen with openings no greater than 25mm.

Disperator food waste disposers within the product series 500, 500A, 500V, 500RS, 500EX, GTS-E65, GTS-Mini hold the DNV-GL Statement of Compliance with MARPOL Annex V for regulation of disposal of ground food waste at sea.

With thousands of passengers onboard, a cruise ship generates a great deal of food waste. If not able to discharge of the waste it must be collected in a special storage tank and handled while at port, often covered by stringent regulations.

Disperator provides the grinding units associated with the complete vacuum systems offered by world-leading suppliers connected to the storage tanks.

INSTALLATION IN WORK BENCH & TABLE

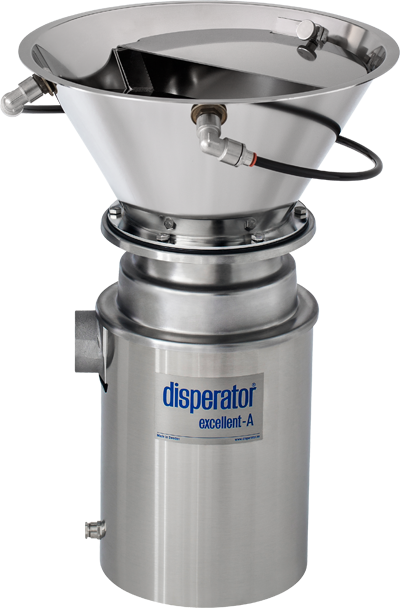

The HK-discharge cone is welded into an existing working bench or table top and permits continuous feeding of waste into the disposer. Work stations handling large amounts of food waste frequently benefits from the large inlet of the HK-cone, allowing for effective handling without unnecessary interruptions. The cone is delivered with flushing nozzles, solenoid valve and line strainer already assembled for easy installation.

The disposer inlet is partly covered by a labyrinth protection guard preventing accidental access to the rotating grinding unit during operation. The guard is fitted with a limit switch which stops the disposer motor if lid is lifted.

Food waste disposers within the 500A Excellent Series features grinders of specially alloyed steel, housings and mounting assemblies of stainless steel EN 1.4301 (AISI304) and a protection class of IP55 – all assuring long life expectancy and operational reliability.

Disperator's line of disposers can be adapted to your specific kitchen and working environment, regardless of size and layout!

Immediate and efficient removal of food waste - the heaviest part of kitchen waste - is a necessity in every kitchen. Using a disposer, food waste can hygienically and easily be taken care of and reduce the total amount of refuse.

Regardless of the choice of model, the process is the same. Food waste is washed down the disposer and ground in the grinding chamber into small particles for further transport in the sewage network or to a tank, and possibly subsequent recycling into biogas through digestion. The 500A Excellent Series includes six different disposer sizes as part of the basic assortment; 510A, 515A, 520A, 530A, 550A, 575A. A range of mounting assemblies complements the basic disposer with possibilities for installation in sink and washing line (BS, ATF, DRR-K), counter top and working table (HK, MI) or as free-standing unit (MC, MB).

BENEFITS FOR YOU

• Fast and easy transport of organic waste = no leaking garbage bags or heavy lifting to garbage bins.
• Reduction of bad odors, pests and bacteria formation = more pleasant working environment and improved hygiene.
• Fewer garbage collections, as well as for dry waste = lower total waste management cost.
• Fewer waste containers are needed and transported to storage locations = less time and expense for cleaning in the kitchen.
• Freeing of space and lower energy cost for cooled waste rooms = which would otherwise be used for storage of organic waste.
• Contribute to recycling through biogas production = possibility to establish a corporate environmental friendly profile.

BENEFITS FOR YOUR SURROUNDINGS & THE ENVIRONMENT

• Improving hygiene and eliminating bad odors around garbage bins and buildings.
• Fewer transports of garbage means less vehicle exhausts, road wear and accident risks.
• Possibility of recycling through anaerobic digestion in the form of renewable energy (biogas).
• Better utilization of social investments in sewage systems and sewage treatment plants.
• The cost of pre-processing (grinding) of food waste at treatment plants/biogas facilities is avoided.
• Less garbage is deposited and instead utilized in a better way.

• Technical Specification	510A-HK	515AHK	520A-HK	530A-HK	550A-HK	575A-HK
  Normal capacity, kg/hr	300	400	500	700	850	1000
  Electrical power, kW	0,75	1,1	1,5	2,2	4,0	5,5
  Rated current, A for:
  230 V / 3 ph. / 50 Hz	3,7	4,6	5,9	9,0	14,4	19,7
  400 V / 3 ph. / 50 Hz	2,1	2,6	3,4	5,2	9,0	11,5
  440 V / 3 ph. / 60 Hz	2,1	2,4	3,5	5,2	7,5	11,6
  Other 3-ph voltages available	1-ph 220-240V, 50/60Hz also available for models 510 and 515
  Control voltage	For marine installation the same as motor voltage. For land installation 230V / 50HZ
  Fuse rating, slow	10 A	10 A	10 A	16 A	16 A	25 A
  Gross / net weight, kg	38 / 32	41 / 35	46 / 40	54 / 48	57 / 51	66 / 60

GRINDABLE WASTE

• Only food waste may be ground in the disposer!
  For example: vegetables, fruits, root crops, rice, pasta, meat, fish, fish waste, shrimp shells, chicken- and meat bones (depending upon model size), eggshells and coffee grounds with filters.

  Difficult to grind food waste with long fibers (e.g. banana peels, leeks) and tendons (e.g. fish waste, meat scraps) must be cut into smaller pieces (3-5 cm) and mixed with other food waste when ground. Sticky food waste (e.g. cooked steamed rice and pasta, bread) require extra addition of flushing water.

START / STOP

• 1. Press green button on contactor placed on the wall. Disposer and flushing water starts.
  2. Feed food waste in an even and continuous manner.
  3. When grinding is completed the disposer motor’s idle running is heard.
  4. Wait 30 seconds and press red button on contactor. Disposer and flushing water stops.

EXAMPLE OF INSTALLATION LAYOUT

• 1. 1. Complete contactor with motor protector
     2. Main switch for incoming electricity (required extra, available from Disperator)
     3. Backflow preventer (required extra, available from Disperator)
     4. HK-discharge cone for continuous feeding of food waste SS2333 (EN1.4301-2B), cover guard is fitted with a limit switch
     5. Flushing nozzles, 2pcs
     6. Motor, IP55 in stainless steel disposer housinSS2333 (EN1.4301-2B)
     7. Adjustable legs 3pcs. in stainless steel  SS2333 (EN1.4301-2B). Standard for Models 520, 530, 550, 575. Available as an optional extra for Models 510, 515.
     8. Water trap (required extra, available from Disperator) for installation to vertical or horizontal existing drain pipe.
     9. Reinforced flexible hose for flushing water connection (required extra, available from Disperator)
     10. Flow control/cut off valve (optional extra, available from Disperator)
     11. Line strainer for incoming water
     12. Complete solenoid valve with coil, incl. cable plug

INCLUDED IN STANDARD DELIVERY

Documentation

• 1. 1. • Installation description
        • Product sheet with photo, dimensional drawings and technical specification
        • Layout, connection and wiring diagrams for electrical components
        • Operating instructions (laminated) to fix against wall near the unit
        • Service instruction with exploded view of unit’s parts and recommendation on service packages

Product

• 1. 1. • Disperator of the ordered model and motor voltage, as per delivery note
        • Complete contactor with motor protector, no voltage release and control coil
        • Jam release wrench for freeing rotary grinder from non-grindable object
        • 3pcs of adjustable legs (for disposers having a motor power of 2,2kW or more)
        • 2m motor cable

Mounting assembly

• 1. 1. • HK-discharge cone with rubber gasket to be placed between disposer and cone
        • Solenoid valve and line strainer in ready assembled water flush pipe with nozzles
        • Assembled limit switch connected to  cover guard
