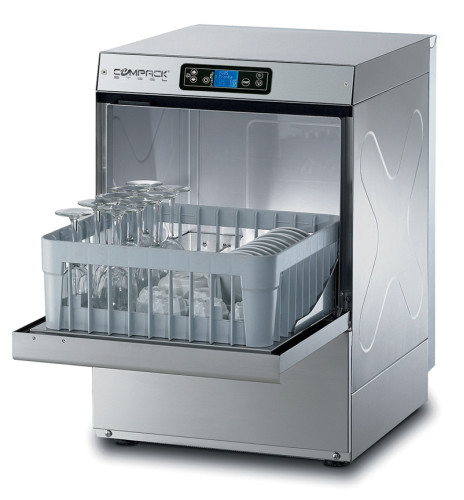

LUX LINE LSM28E
-
£2,672.00 (ex VAT)
- Product Code:LUX LINE LSM28E
Product Status : 2-3 Days
Product Status : 2-3 Days
The LUX line models represent the highest expression of technology Made in Compack, capable of offering a total or partial replacement of clean water at each wash cycle for hygiene and brilliance never seen before. Its operation is very practical, simply remove the overflow tube to switch from partial to total replacement, with an eye always on saving. Available with various accessories, from the version with automatic water softener to the one with Acquatech System that ensures constant temperature and pressure, the LUX line is the right solution for the most demanding customers.
The LSM28E model is equipped with Acquatech System which, through an atmospheric boiler and rinse pump, ensures constant temperature and pressure and optimum water consumption. This model is suitable for washing cups, glasses and saucers with always clean water and ensures a sanitising rinse cycle, proving to be the perfect choice for canteens, nursing homes, pastry shops, bakers and butchers where compliance with hygiene rules (HACCP) is essential. Separate washing and rinsing arms ensure optimum results and the tank of only 5 litres optimises consumption, thus increasing savings. The choice between 50% or 100% of water replacement makes the glasswasher extremely adaptable to your every need. The Reverse Osmosis System, the suitable detergents and the tilted basket are the answer for all premises where perfect glasses and automatic drying are indispensable elements.
The electronic control allows you to manage various parameters to give you an absolute customisation level and the continuous self-diagnosis allows you to minimise machine downtime, suggesting some operations to be verified. The self-cleaning cycle at the end of the day cleans the wash tank and empties the boiler from the hot water, preventing limestone forming inside. The standard double peristaltic electric rinse-aid and detergent dispenser ensures the best result from each wash cycle with great savings thanks to the precise dosage managed by the electronic card; whereas, the moulded washing and rinsing arms ensure great reliability and durability. The Thermo-stop function checks that washing and rinsing begin only when the desired temperature is reached. The bodywork is made entirely of AISI 304 steel and has been designed with all components in the front to allow easy technical assistance. Sturdy and reliable dishwashers to best deal with every moment of your day.
| Dimensions - (mm) L - P - H | 470x555x710h | |||||||
|---|---|---|---|---|---|---|---|---|
| n° baskets/hour - (+55°C) | Max 40 | |||||||
| Height glass max | 245mm | |||||||
| Ø height plate max | 265mm | |||||||
| Rinsing and washing arms | Ø18 INOX | |||||||
| Tank heating element - Tank capacity | 1,4kW – 5lt | |||||||
| Boiler heating element - Boiler capacity | 4,5kW – 6,1lt | |||||||
| Washing pump (kW-Hp) | 0,19kW / 0,25Hp | |||||||
| Total power input / Current | 4,69kW / 16A - 400V3N+T 50Hz | |||||||
| Recommended inlet water temperature | +55°C | |||||||
| Water hardness | 7÷10 °f | |||||||
| Water consumption per cycle (inlet suggested pressure 2 BAR) | ~5lt (total refill cycle) ~2,5lt (partial refill cycle) | |||||||
| Adjustable detergent and rinse-aid dispenser | ELECTRIC | |||||||
| Acquatech system rinse | 250W | |||||||
| pompa_di_scarico_installata | 40W | |||||||
| STANDARD EQUIPMENT | ||||||||
| Saucer holder 12 pieces | 1 | |||||||
| Cutlery insert | 1 | |||||||
| Basket for glasses dim.400x400x150mm | 2 | |||||||
| Integral tank filter | 1 | |||||||
| ACCESSORIES | ||||||||
| Input voltage 230V/3+T | ||||||||
| Thermo/acoustic insulation double wall kit and upper cover | ||||||||
| Reverse osmosis system | ||||||||
| Inclined basket for wine glasses dim.400x400x170mm | ||||||||
| Kit 4 Stainless steel feet 50-70mm | ||||||||
2 baskets for glasses Ø400mm
|
