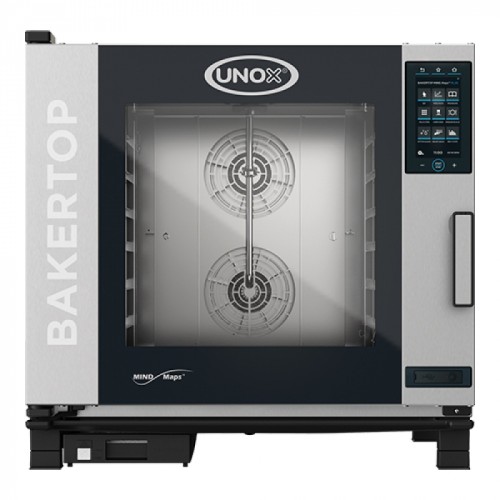

BAKERTOP MIND.Maps™ COUNTERTOP PLUS

Product Status : 21 Day lead time

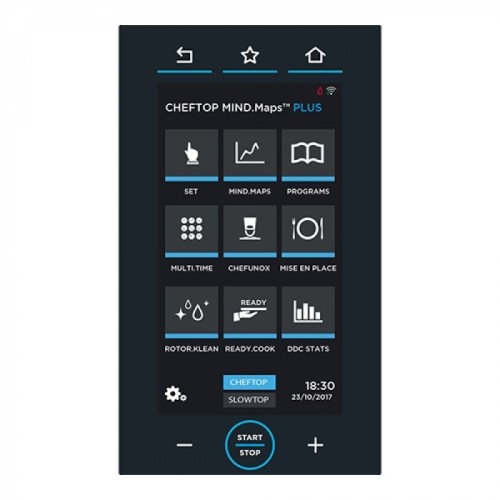

The UNOX Mind.Maps PLUS distinguishes itself by the beautiful design and the ease of use of the 9.5 inch capacitive control display, with which dishes can be prepared manually or using the revolutionary Mind.Maps technology, but it also gives access to a list of cooking cycles that previously saved or new recipes can be created and saved. The oven features Adaptive.Cooking for a perfect result every time, Multi.Time that allows you to bake different products at the same time using 10 timers and Mise.en.Place that allows all dishes to be ready at the same time, with CHEFUNOX you have access to a pre-programmed library of programs for maximum cooking results. The Dry.Maxi technology ensures extraction of humidity, Steam.Maxi for perfect steaming, Air.Maxi for perfect hot air circulation and the Rotor.Klean automatic cleaning system ensures a clean oven cavity. With the help of the integrated WIFI module it is possible to remotely manage your recipe book, to synchronize and to monitor the consumption of your oven

BAKERTOP MIND.Maps™ PLUS is the intelligent and self-cleaning combi oven for bakery and confectionery. Automatic baking cycles and intelligent functions for always impeccable results.

Technologically advanced combi oven for fresh or frozen baking processes and for gastronomy cooking processes (dehydrating, steaming, low temperature baking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) thanks to Unox Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size. Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff.

Key Features:

• ROTOR.Klean™: automatic washing system
• Automatic special washing behind the fan guard
• Cooking chamber in high-resistance AISI 304 stainless steel with rounded edges
• Triple glass
• Cooking chamber lighting through LED lights embedded in the door
• Tray supports with anti-tip system
• Drip collection system integrated in the door which works even when the door is open
• 4-speed fan system and high-performance heating elements
• Integrated DET&Rinse™ detergent container
• Integrated Wi-Fi
• Wi-Fi / USB data: download/upload HACCP data
• Wi-Fi / USB data: download/upload programs

• W: 860mm D: 967mm H: 842mm
• Net Weight: 112kg
• Tray pitch: 80mm

Power:

Standard

• Voltage: 380-415 V
• Phase: ~3PH+N+PE
• Total Power: 14 kW

storage sizing-60 x 40 cm (bakerynorm)

humidity method-steam function

storage capacity-06

net product weight-111.7 kg

material-stainless steel

with power cable-YES

necessary connection-water connection 3/4, drain connection

connection power supply- 1x (380-415V)-3N

frequency- 50/60 Hz

power (electric)-14000 W

height product- 84.3 cm

product width-86 cm

product depth-96.7 cm

spacing level- 8 cm

temperature range- 30° up to 260°C

timer range- 09:59:59, infinite

service-digital

programmable-Yes

number of speeds-4

number of fans-2

hinge side-Left

with core temperature probe-yes

with drip tray-yes

with cleaning system-yes

type of glass- triple glass

lighting-indoor lighting
