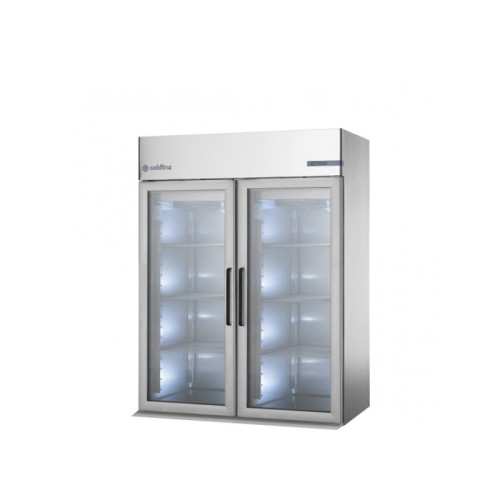

Coldline - Refrigerated cabinet with positive trolley - GN2 / 1 and 600 x 400 - Group housed - 2 glass doors - 1950 liters - J1602MV-2
-
£6,666.00 (ex VAT)
- Product Code:Coldline - Refrigerated cabinet with positive trolley
Product Status : 2-3 Days
Product Status : 2-3 Days
- Reduced size (depth 815 mm)
- Monohull construction
- 75 mm insulation
- Tropicalized group + 43 ° C
- Ventilated refrigeration
- GN2 / 1 or 600 x 400
• All stainless steel monocoque construction AISI304 18/10
• Anti-corrosion treated evaporator
• Interchangeable refrigeration unit easily
• Rounded inside corners •
Floor insulation: 13 mm
• Stainless steel rear option
• Door with blocking of the opening at 105 °
• Door opening on the left or on the right (to be specified when ordering)
• Shutdown of the fan when opening the door
• Removable magnetic seal
• Door with original lock
• Indoor lighting
• Tropicalized group + 43 ° C
• Ventilated refrigeration
• Anti-corrosion treated evaporator
• Freely interchangeable refrigeration unit •
Automatic defrost
• Automatic condensate evaporation
• Electronic thermostat (mini / max temperature alarm, door open alarm, ...)
• Refrigerant gas: R290a
• Delivered without trolleyFor 2 GN2 / 1 or 600 x 400 trolleys
Automatic defrost - Intelligent system that varies depending on the actual presence of frost. Only works the minimum time required and thus limits energy consumption.
The condensation evaporation system is activated only in the presence of water following defrosting.
Tropicalized condensing unit - Guaranteed operation up to an ambient temperature of + 43 ° C
The fans stop to the opening of the door reduces the changes in temperature and therefore the compressor work.
The Aspera compressors guarantee a reduction in consumption by 15% and noise levels by 5 dBA.
The insulation thickness of 75 mm reduces heat loss, compressor work and thus energy consumption.
Dimensions (W x D x H):
- Ref. J1602M: 1620 x 815 x 2115 mm
- Ref. J1602MV: 1620 x 815 x 2115 mm
- Ref. J1704M: 1620 x 815 x 2115 mm
Technical characteristics :
- Power supply : 230/1 / T 50 Hz
- Power consumption: 992 W 5.6 A
- Cooling capacity *: 887 W
* Temp. evaporation -10 ° C condensing. + 54.4 ° C
Floor covered with AISI 304 stainless steel for maximum hygiene
Stainless steel ramp for easy trolley access
Lateral trolley protection reinforcements
Rear stainless steel option and trolleys:
- Trolley 20 levels GN2 / 1 - Size 598 x 660 x 1630 mm - Reference: O660904020
- Trolley 20 levels 600 x 400 - Size 470 x 620 x 1630 mm - Reference: O660905020
- Rear stainless steel supplement - Reference: ARRINOX2
Parts warranty 3 years Food Mono 230 V + T Width (mm) 1620 Depth (mm) 815 Height (mm) 2115 Weight (kg) 190 Temperature -2 ° + 8 ° C Cooling capacity 887 W Power (W) 992 Type of gas R290A
