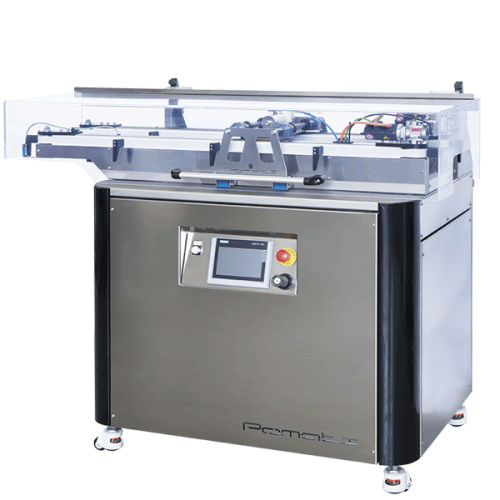

Pomati Molds Tipper
-
£0.00 (ex VAT)
- Product Code:Pomati Molds Tipper
Product Status : 6-8 Week Lead Time
Product Status : 6-8 Week Lead Time
with the possibility to have two types of working.
Overturning, vibration and cleaning of molds
Tipper borns for overturning, vibration and cleaning of polycarbonate molds (175×275) and give the possibility to have two types of working. Massive products: such as tablets, napolitaines, etc. Hollow bodies: as shells for pralines, chocolate eggs, glasses, etc. The exces of chocolate is recovered automatically.
Programmable
Speed, vibration time and heating can be programmed from Touch panel to suit the production needed.
Specifications:
Technical features Structure inox AISI 304 alloy
Conveyor Belt Variable speed of the belt
Control Adjustable vibration intensity pneumatically from the control panel
Cleaning Extraction of tank collecting chocolate for rapid cleaning and washing
Mechanical features Anti-vibration system for absorption of the vibrations of the machine
Power Volt 100/240 – Hz 50/60 – Kw. 2 Three Phase
Dimensions mm 800 x 1550 x h 1250
COST: POA
