AK -Ramon TS-550 Automatic thermosealer with vacuum and gas

  • £8,999.00 (ex VAT)

  • Product Code:AK -Ramon TS-550 Automatic thermosealer with vacuum and gas

Product Status : 21 Day lead time

QTY

Product Status : 21 Day lead time


  • The semi automatic machine is made entirely from AISI 304 Stainless Steel with the dies from anodized aluminium and is equipped with gas flush. This machine comes with a cutter that follows the contours of the tray.

    The vacuum control and gas flush are controlled by sensor with a 25m³/h Busch pump. There is maintenance push button control and the digital control panel is equipped with 99 memory programmes.

    The moulds are easy to change and can work with different types of tray (PP, Pet, Aluminium etc). The digital panel can be adjusted from 0-230 ℃.

    Maximum sealing surface: 320 x 260mm

    Film Roll Width: 430mm

    Power: 1500W

    Please note: No dies are included and are available to purchase separately
  • Made of stainless steel.
  • Anodized aluminum molds.
  • Automatic or semi-automatic tray sealer.
  • Equipped with a 25m3 / h vacuum pump.
  • Inert gas inlet.
  • Digital panel with 99 memory positions.
  • Automatic welding system.
  • Automatic film feeding.
  • Compact and robust model.
  • Rapid heating of the selected temperature
  • It allows working with different types of tray materials, PP, PET, ALUMINUM ...
  • Equipped with wheels for easy movement.
  • It works with compressed air.
  • The machine works in three phase.
  • Maximum sealing surface: 380x265mm.
  • Film reel width: 400mm.
  • Power: 1,500W.
  • Standard die set
  • Digital control panel
  • Temperature regulation.
  • Automatic stop programming.
  • Electronic temperature control 0o to 250o.
  • 99 memory programs.
  • Empty control by sensor.

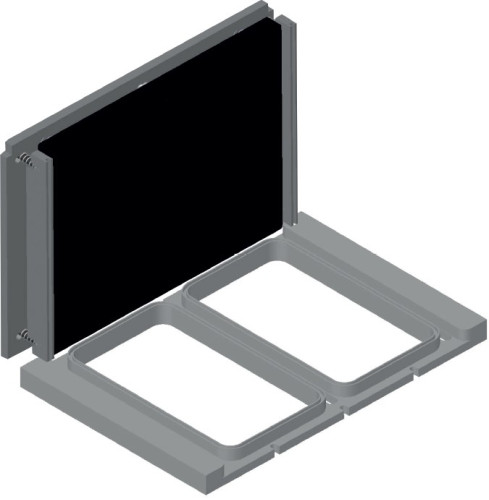

    • Standard die set with profile cut:
    • 1/8 GN (168x130mm) - 4 cavities.
    • 1/4 GN (160x260mm) - 2 cavities.
    • 1/2 GN (320x260mm) - 1 cavity.
    We can manufacture any type of special die set according to the customer's trays.

    Standard die set straight cut, not profile cut
    • 1/8 GN (168x130mm) - 4 cavities.
    • 1/4 GN (160x260mm) - 2 cavities.
    • 1/2 GN (320x260mm) - 1 cavity.
    We can manufacture any type of special die set according to the customer's trays.
  • Machine comes with standard Die set  all additional die sets please enquire about prices

    Options
    • 40m3/h Busch pump.
    • 40m3/h oxygen Busch pump.
    • Automatic tray holder drawer and automatic film collector (for molds with cutting profile).
    • 6L.Silent air compressor.
  • 612 mm.730 mm.1,490 mm.890 mm.395 mm.1,115 mm.495 mm.
