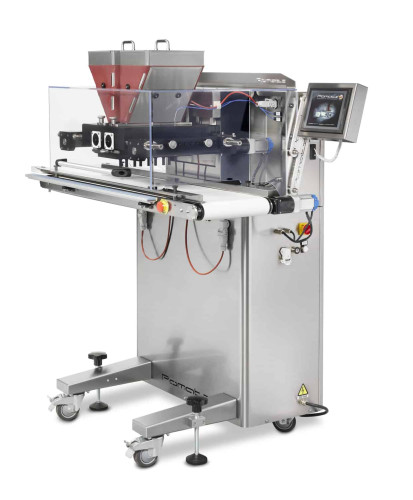

Pomati ONE SHOT DEPOSITOR OSD-10
-
£0.00 (ex VAT)
- Product Code:Pomati ONE SHOT DEPOSITOR OSD-10
Product Status : 21 Day lead time
Product Status : 21 Day lead time
Perfection becomes surprising.
The One Shot Depositor OSD-10 allows to manage an hourly production up to 140 kg of ultra-thin, filled and customized-shape chocolates. For this reason, its ease of use and optimization of production times can surprise: quick cleaning permits to change format in no time.
| Technical features | Structure | Entirely made in AISI 304 stainless steel |
| Mold/blister | 275 x 135 mm (width) | |
| Dispenser | Standard 2 X 5 – 2 X 10 piston dispensing system | |
| Heating | Hoppers and valves are heated separately | |
| Conveyor Belt | Removable conveyor belt | |
| Cleaning | Automated cleaning | |
| Mechanical features | The primary movements are activated by a servomotor | |
| Power | 100/240 Volts – single-phase Hz 50/60 – KW 1,5 (customized voltages upon request) | |
| Available accessories | OSV – Vibrating table for molds | |
| OSM – Mold loader with preheating | ||
| Dosing plate | ||
| Feeding tower for chocolate | ||
| Feeding tower for Cream | ||
| Molds deviator 90° | ||
Guides for mold width 400 mm We use sanitizing process with all the machines produced, in all external and visible surfaces https://www.pomati.it/wp-content/uploads/2019/08/pomati-catalogo-one-shot-depositor.pdf COST: POA |
