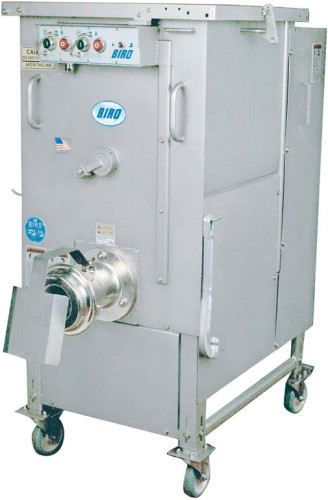

BIRO MODEL AFMG-48II MIXER GRINDER
-
£16,250.00 (ex VAT)
- Product Code:BIRO MODEL AFMG-48II MIXER GRINDER
Product Status : Pre-Order
Product Status : Pre-Order
The Biro Model AFMG-48-II (Auto-Feed Mixer-Grinder) is a workhorse for medium volume meat operations. Its 7.5 hp (5.6 kw) auger motor and size 48 head, which uses size 32 knife and plate, can give an output of over 65 lbs. (30 kg) per minute for the productivity you need. The heavy duty roller chain auger drive system with tapered roller bearing journal box is separate from the heavy duty mixer motor interface gear drive system. This more efficient design transfers maximum torque power to the auger. The heavy duty stainless steel 200 lb. (91kg) hopper and frame resist corrosion and damage, even in an environment of harsh cleaners. Your mixer grinder lasts longer and gives you more return on your investment. Power, durability, and low maintenance makes the Biro Model AFMG-48-II Auto-Feed Mixer-Grinder a meat room workhorse.
Model AFMG-48, 7.5 kw, 220/380-415-50-3, 90 kg Hopper, approx. 30 kg/min.
57092NE 7.5 kw, 220/380-415-50-3 Optional Motor
SPECIFICATIONS
MODEL
AFMG-48-II AUTO-FEED MIXER-GRINDER
CONSTRUCTION
HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLE, FRAME AND LEGS. CAST IRON HOT TIN DIPPED BOWL, RING AND AUGER (USES SIZE 32 KNIFE/PLATE.)
MOTORS
| MOTOR | HP | KW | TYPE | VOLTS | AMPS | CYCLE | PH | CODE |
|---|---|---|---|---|---|---|---|---|
| AUGER | 7.5 | 5.6 | TEFC | 208-230/460 | 24-21/11 | 60 | 3 | STD |
| MIXER | 1.75 | 1.3 | TEFC | 208-230/460 | 5.7-5.2/2.6 | 60 | 3 | STD |
| AUGER | 10 | 7.5 | TEFC | 208-230/460 | 31-28/14 | 60 | 3 | EC |
| AUGER | 7.5 | 5.6 | TEFC | 575 | 8.8 | 60 | 3 | EC |
| MIXER | 1.75 | 1.3 | TEFC | 575 | 2.4 | 60 | 3 | EC |
| AUGER | 10 | 7.5 | TEFC | 575 | 11 | 60 | 3 | EC |
| AUGER | 7.5 | 5.6 | TEFC | 220/380-415 | 22/12.7-11.6 | 50 | 3 | STD |
| MIXER | 1.75 | 1.3 | TEFC | 220/380-415 | 5.9/3.4-3.1 | 50 | 3 | STD |
| AUGER | 10 | 7.5 | TEFC | 220/380-415 | 28/16.2-14 | 50 | 3 | EC |
TEFC= TOTALLY ENCLOSED FAN COOLED STD=STANDARD EC=EXTRA COST NC=NO CHARGE
SWITCH
WATERTIGHT MAGNETIC WITH THERMAL OVERLOAD AND UNDER VOLTAGE PROTECTION.
POWER CORD
12’ #10 GA- 4 STRAND CORD WITH PLUG 7.5 HP, U.S., 12’ #10 GA – 4 STRAND CORD NO PLUG 7.5 HP INTERNATIONAL(50 HZ/575V) 12’ #8 GA – 4 STRAND CORD WITH PLUG 10 HP U.S., 12’ #8 GA – 4 STRAND CORD NO PLUG 10 HP INTERNATIONAL(50 HZ/575V).
HOPPER CAPACITY
HOPPER 200 LBS. (91 KG).
GRINDING CAPACITY
OUTPUT – UP TO 65 LBS. (30 KG) PER MINUTE.
DRIVE SYSTEM
AUGER: SINGLE REDUCTION (35 PITCH – 4 ROW) ROLLER CHAIN DRIVE WITH TAPERED ROLLER BEARINGS. MIXER: HEAVY DUTY MIXER MOTOR INTERFACE DRIVE SYSTEM.
SAFETY
MAGNETIC SAFETY INTERLOCK ON HOPPER LID.
STANDARD FEATURES
STAINLESS STEEL 2ND GRIND PADDLE WITH CENTER ARMS, 5” DIA. TOTAL LOCK SWIVEL CASTERS WITH ANTI-MICROBIAL WHEELS, SPURT GUARD, EXTRA ROD FOR FRONT, LEFT OR RIGHT SIDE OPENING LID, POWER CORD (SEE ABOVE), RING WRENCH, BOWL NUT WRENCH, TWO SHEAR PINS WITH SCREWS, RECEPTACLE FOR ELECTRIC FOOTSWITCH ,OPERATING AND SAFETY MANUAL.
OPTIONS (EC)
SIZE 32 PLATE AND KNIFE, SINGLE-REDUCTION “EAGLE” SELF-CENTERING, NO STRETCH, NO LUBRICATION, POLY BELT AUGER DRIVE, ELECTRICAL OR PNEUMATIC FOOTSWITCH, ACCESSORY CLEANING AND STORAGE RACK, EXTRA LONG STAINLESS STEEL LEGS (33”(838 MM) TO 42”(1067 MM)) FROM FLOOR TO BOWL CENTER, SIZE 52 LEFT HAND 35° HOPPER FEED INLET, CONNECTIONS FOR TANDEM OPERATIONS, 10 HP (7.5 KW) AUGER MOTOR, STAINLESS STEEL BOWL, RING AND AUGER (ENTERPRISE OR UNGER STYLE).
OPTIONS (NC)
SIZE 52 RIGHT HAND 35° HOPPER FEED INLET (SEE DRAWING).
CERTIFICATION
U.S.D.A., U.L., N.S.F., C.S.A. ON 7.5 208/230/460-60-3
WEIGHT
UNCRATED: 683 LBS. (310 KG) APPROXIMATE. CARTON PACKED: 789 LBS. (358 KG) APPROXIMATE. WOOD CRATED: 887 LBS. (402 KG) APPROXIMATE.
DIMENSIONS CRATED
L=50” (1270MM), W=36” (914.4MM), H=66” (1676MM)
Item Number
LIT-AFMG48-123
