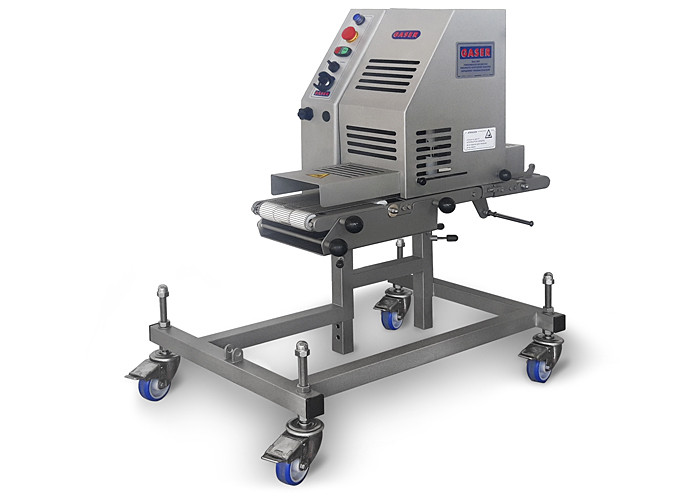

Gaser PNT-120 automatic portioning machine for mincemeat with leg and outlet belt
-
£8,625.00 (ex VAT)
- Product Code:Gaser PNT-120 automatic portioning machine
Product Status : 21 Day lead time
Product Status : 21 Day lead time
- Made in stainless steel.
- With tractioned inner belt with adjustable inclination and speed.
- Outlet belt one meter long and adjustable height.
- Portions are adjustable when changing the length or changing the nozzle.
- Uses paper in rolls.
- Perfect presentation of product.
- Automatic cutting of paper and portion of meat.
- Pneumatic operation (6kg / cm2).
- Air consumption 10 litres per minute.
- Electrical power: maximum 370 watts.
- Single-phase electrical current of 230V, 50 / 60Hz.
- Measurements: 470 x 360 x 600 mm.
- Weight: 69kg.
IT CAN SHAPE MINCEMEAT 'THREADS', PORTIONS OR CYLINDERS (with paper support)
POSSIBLE ATTACHMENTS TO FILLER OR MEAT MINCER 98-114-130:
- In any attachment the maximum length is 220 mm and the maximum thickness for portions or cylinders is 30 mm.
- For threads the thickness depends of the meat mincer outlet volume.
CONNECTED TO FILLER:
- It can shape portions or cylinders from 100 to 115 mm width depending on order.
CONNECTED TO MEAT MINCER 98:
- With outlet for threads the width of the portion is 115 mm.
- With single shaper outlet for portion (80 mm width).
- With special shaper outlet for portion or cylinders (from 100 to 115 mm width depending on order).
CONNECTED TO MEAT MINCER 114:
- With outlet for threads the width of the portion is 115 mm.
- With single shaper outlet for portion (95 mm width).
- With special shaper outlet for portion or cylinders (from 100 to 115 mm width depending on order).
CONNECTED TO MEAT MINCER 130:
- With single shaper outlet for portion (115 mm width).
- With outlet for threads the width of the portion is 145 mm and the portioning machine has to be the Mod. PNT-150.
