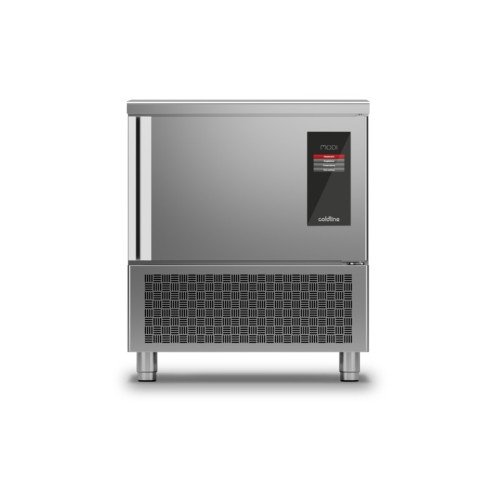

Blast Chiller Mixed cell modi up housed group 5 levels gn 1/1
-
£4,476.00 (ex VAT)
- Product Code:Blast Chiller Mixed cell modi up housed group 5 levels gn 1/1
Product Status : 21 Day lead time
Product Status : 21 Day lead time
Description of the Modi Up mixed cell - Housed group - 5 GN 1/1 levels - W5UG
• Anti-corrosion treated evaporator
• Cycle selection by time or temperature
• Cooling cycles: +90°C - and >
+3°C in 90 min
• Freezing cycles: +90°C - and >
-18°C in 240 min
FUNCTIONS : Cooling, freezing and manual cycle.
TOUCH SCREEN - ERGONOMIC AISI 304 STAINLESS STEEL HANDLE - WIFI COSMO REMOTE CONTROL SYSTEM
• Adjustable ventilation 25% - 100%
• Soft closing door
• Carter can be opened without tools
• USB port for HACCP data
• Customizable recipes
• Insulation (polyurethane ecological without CFC): 60 mm
• Removable 18/10 stainless steel racks for easy cleaning
• Heating cord
• Height-adjustable 18/10 stainless steel feet
• Door with automatic closing and locking of opening at 105°
• Ergonomic handle on the entire height
• Easily removable magnetic door seal
• Ventilated refrigeration
• Automatic defrosting by hot gas (recovery in a tray located under the cell for housed unit ) and forced air (version without unit)
• Supplied with drain hose
• Refrigerant gas R452a
• Passage automatic in conservation mode at the end of the cycle
• Air-cooled unit (water-cooled on request)
• Automatic fan stop when the door is opened
• Available in ver group remote
control • Touch screen 4.3 touch controls
• Double digital temperature and time display
• Audible end of cycle signal
• Visual and audible door open alarms
- Modular BASE : Allows installation on wheels, legs, fixed base or mobile.
- ELECTRONIC EXPANSION VALVE: Regulates the amount of refrigerant injected, which improves performance by 25% and reduces mobile consumption.
- REPLACEABLE SEALS WITH HIGH PERFORMANCE INSULATION: Guarantees 35% higher insulation efficiency than traditional models.
- AIR CIRCULATION CONVEYOR: The innovative air circulation system envelops the food while reducing the duration of the cooling cycle. - EASY MAINTENANCE: The front panel
quick release system allows the capacitor bank to be cleaned quickly, ensuring that its performance remains constant over time. - OPENING THE VENTILATION Panel : The evaporator is easy to inspect. Its quick release system facilitates cleaning and maintenance. - Slides AND SUPPORTS: The supports with positioning holes make it easy to reposition the Slides in 600 x 400 and GN 1/1
18/10 stainless steel monocoque construction inside and outside
• Rounded inside corners
• Climatic class 5
• Fitted as standard with a core probe (1 point)
• Possibility of memorizing more than 99 cycles
Power supply: 220 / 240 V
Dimensions ( WxDxH) (mm): 710x700x853
| Mark | Coldline |
| Feed : | 220 / 240V |
| Dimensions (WxDxH) (mm): | 710x700x853 |
| Weight (kg): | 105 |
| Cooling capacity : | 1565W |
