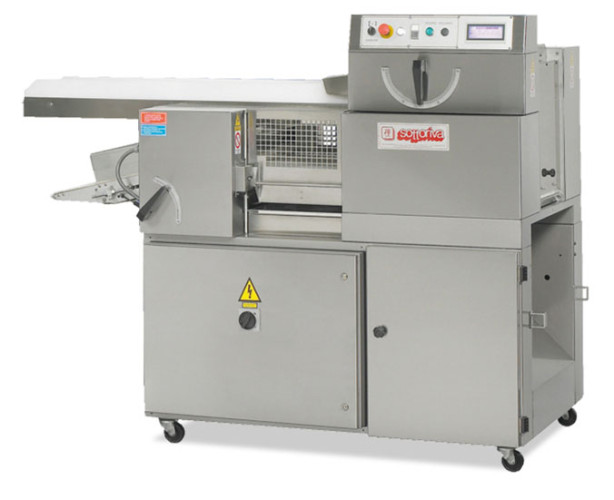

TECNA/I Divider for ciabatta with automatic tray device
-
£24,400.00 (ex VAT)
- Product Code:TECNA/I Divider for ciabatta with automatic tray device
Product Status : 2-3 Days
Product Status : 2-3 Days
Automatic divider at 1,2,3,4,5,6,7 rows, suitable for soft dough like “CIABATTA” and “FRENCH BREAD” forweight range from 25 gr to 2000 gr and over. Automatic feeding with conveyor belt mm 240 useful width. Adjustable sheeting thickness from 6 to 18 mm about. Longitudinal cutting system by interchangeable knives and transversal cutting guillotine device. Universal spreading device with adjustable width by handwheel. Speed variator.
AUTOMATIC TRAY LOADING DEVICE for trays 600x800 mm or 600x1000 mm. The trays capacity is of about 10 trays placed on the back side. Automatic re-setting.
Completely stainless steel machine mounted on castors.
“Touch screen” control panel with the possibility to store 50 programs and operating control by PLC. It can be supplied with bench moulding station or 4 rollers moulder.
http://www.sottoriva.com/downloadDoc.php?f=all%5F135%5F1%5FSOTTORIVA%5F3ante%5FTecna%2Dweb%2Epdf&id=135&r=2
Technical Specifications
| TYPE | MOTOR | MACHINE MASS kg | MASS WITH PACKAGING kg | SIZE mm |
| TECNA | KW 0,55 | 610 | 750 | 2300x1350x1800 |
| TECNA/I | KW 0,92 | 900 | 1000 | 3700x1350x1800 |
