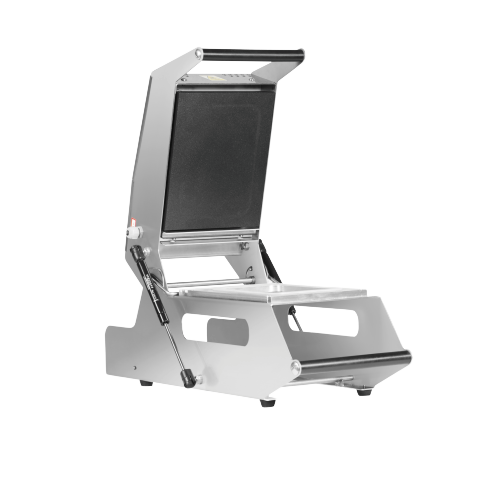

Manual tray sealing machine AK-RAMON TS-150 is easy to use and fast heating machine, manufactured in stainless-steel AISI 304, die sets in anodized aluminum. It cuts off the film at the back side. Ergonomic and robust model equipped with digital panel with sealing temperature regulator (0°- 230° C), easy mold change, molds are interchangeable in a few seconds. It allows working with different types of tray materials, PP, PET, Aluminum, etc. Maximum sealing surface 210×155 mm, film roll width 150 mm, power 900 W. Includes 137×192 mm die set.
Standard molds
137×96 mm (2 trays).
1/8 GN (168×130 mm).
Any type and shape of die set can be manufactured according to the customer trays.
Features
- Digital panel control.
- Temperature regulation.
- Automatic stop programming.
- Electronic control of the temperature, from 0°С to 230°С
- Film roll width, mm-150
- Sealing temperature regulator, C-0°-230°
- Overall dimensions, mm, maximum: L*W*H-570*270*515
- Maximum sealing surface, mm: L*W-210*155
- Net weight, kg-8
